General Information

ADI Part Number

311323479

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD3546G2-IS(4mm)(H)(eF)(O-STD)

Product Line

Ultra Series(SmartIP)

Product Model

DS-2CD3546G2-IS(4MM)(H)(EF)

Product Name

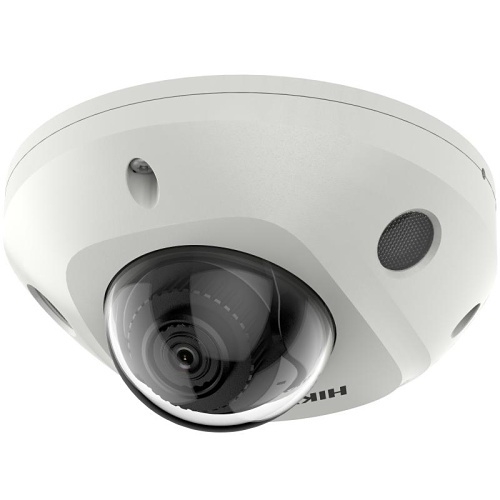

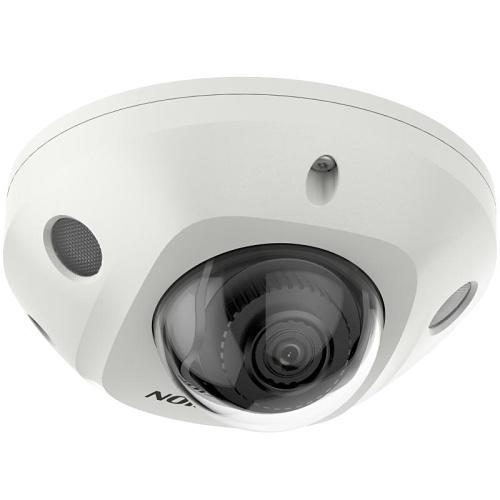

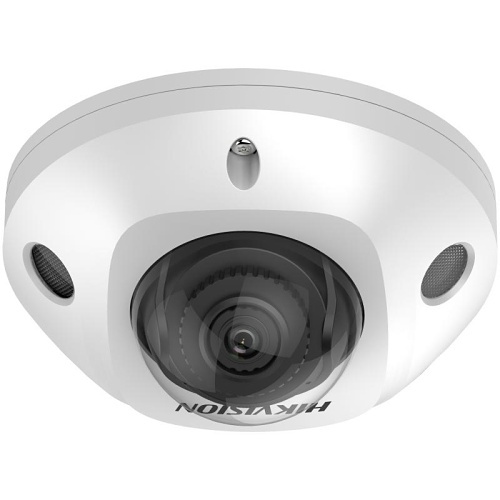

4 MP Acusense Fixed Mini Dome Network Camera

Product Series

3 Series with AcuSense & Heop

Product Type

Network Camera

weight

385 g

Technical Information

Effective Camera Resolution

4MP

Field of View

Horizontal: 84°, Vertical: 45°, Diagonal: 99°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.4

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264+, H.264M, H.265, H.265+, MJPEG

Video Resolution

2688 x 1520

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.003 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

HDMI

No

Lens

Focal Length

4 mm

Lens Included

Yes

Maximum Focal Length

4 mm

Physical Characteristics

Depth

57.4 mm

Durability

Dust Resistant, Vandal Resistant, Water Resistant

Form Factor

Mini

Power Description

Input Voltage

12V DC

Product Information

Diameter

110 mm

Mount Type

M12-Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Impact Protection Rating

IK08

Hikvision DS-2CD3546G2-IS(4mm)(H) AcuSense Ultra Series 4MP Fixed Mini Dome IP Camera, H.265+, IP67, IK08
