General Information

ADI Part Number

311323463

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD3346G2-ISU(2.8mm)(H)(eF)

Product Model

DS-2CD3346G2-ISU(2.8mm)(H)(eF)

Product Name

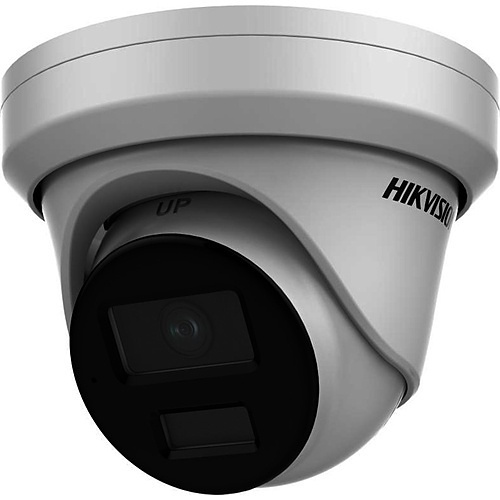

4 MP AcuSense IR Fixed Turret Network Camera

Product Type

Network Camera

weight

630 g

Technical Information

Effective Camera Resolution

4MP

Field of View

Diagonal: 122°, Horizontal: 101°, Vertical: 54°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.4

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.264+, H.265, H.265+, MJPEG

Video Resolution

2688 x 1520

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Out of Scope

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 s

Minimum Illumination

0.003 lux|0 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8 mm

Lens Included

Yes

Physical Characteristics

Durability

Dust Resistant

Power Description

Input Voltage

12V DC

Product Information

Diameter

127.3 mm

Length

96.3 mm

Mount Type

M12-mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Hikvision DS-2CD3346G2-ISU(2.8mm)(H)(eF) 4MP AcuSense Strobe Light and Audible Warning Fixed Turret
