General Information

ADI Part Number

311322534

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD3186G2-ISU(2.8mm)(H)

Product Line

Ultra Series(SmartIP)

Product Model

DS-2CD3186G2-ISU

Product Name

8 MP AcuSense Fixed Dome Network Camera

Product Series

3 Series with AcuSense & Heop

Product Type

Dome Cameras

weight

500 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

horizontal FOV 108°, vertical FOV 53°, diagonal FOV 133°

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Camera

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Durability

Dust Resistant, Vandal Resistant, Water Resistant

Form Factor

Dome

Power Description

Input Voltage

12V DC

Product Information

Diameter

121.5 mm

Mount Type

M12-mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

Back Light Compensation (BLC), Day/Night, Gain Control, Highlight Compensation (HLC), Human Detection, Motion Detection, Password Protection, Privacy Masking, Region of Interest, Vehicle Detection, Wide Dynamic Range

Impact Protection Rating

IK10

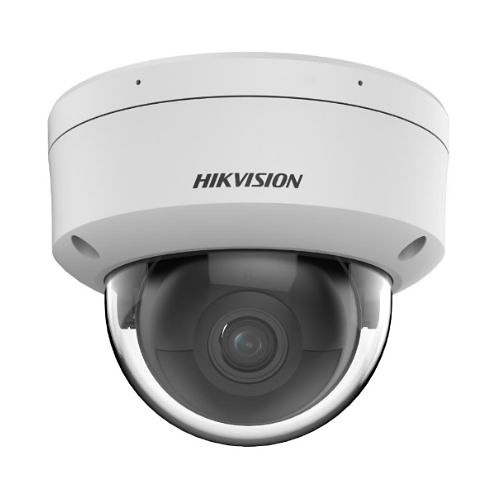

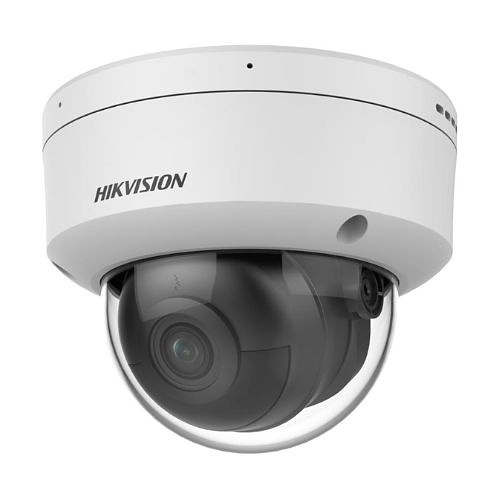

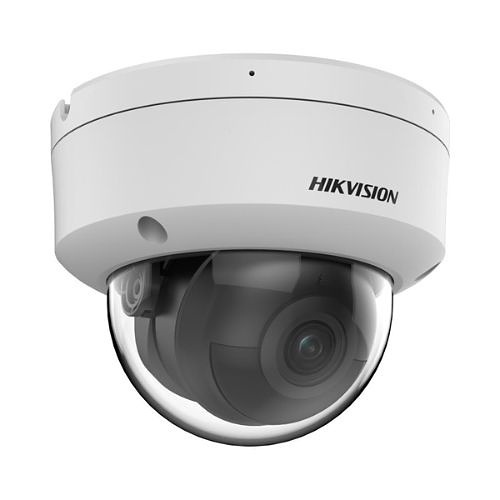

Hikvision DS-2CD3186G2-ISU Ultra Series, 8MP AcuSense IP Dome Camera, 2.8mm Fixed Lens, IR 40M, IP67
