General Information

ADI Part Number

311322201

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

IDS-2CD7547G0-XZHSY(2.8-12MM)

Product Line

Darkfighter

Product Model

IDS-2CD7547G0-XZHSY

Product Name

4 MP DarkfighterS DeepinView Varifocal Dome Camera

Product Series

DeepinView

Product Type

Network Camera

weight

2.10 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Diagonal, Horizontal, Vertical

Lens Type

Varifocal

Maximum Aperture

f/1

Maximum Frame Rate

60 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Colour, Infrared

Optical Zoom

4x

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1 Second

Minimum Illumination

0.0001 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8-12mm

Lens Included

Yes

Maximum Focal Length

12 mm

Minimum Aperture

f/1.2

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Dome

Power Description

Input Voltage

12V DC, 24V AC

Product Information

Diameter

160 mm

Storage

Storage Type

Memory Card

Miscellaneous

Country of Origin

CN

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

Day/Night, Digital Watermark, Human Detection, Motion Detection, Password Protection, Privacy Masking, Region of Interest, Vehicle Detection, Video Management System, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

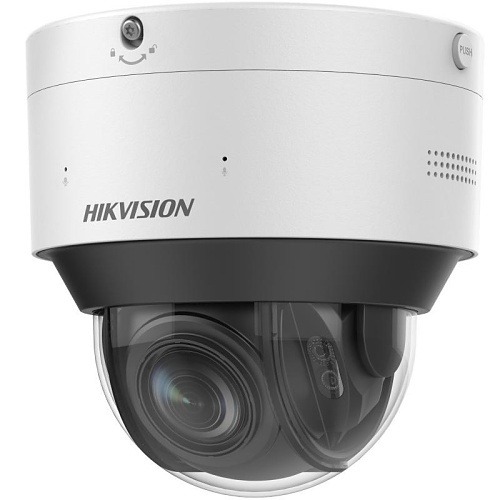

Hikvision IDS-2CD7547G0-XZHSY(2.8-12MM) Darkfighter DeepinView Series 4MP Moto Varifocal Dome Camera, IP67, IK10, White
