General Information

ADI Part Number

311319002

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

IDS-2CD7A46G0/P-IZHSY,8-32MM,C

Product Line

DeepinView

Product Model

IDS-2CD7A46G0/P-IZHSY,8-32MM,C

Product Name

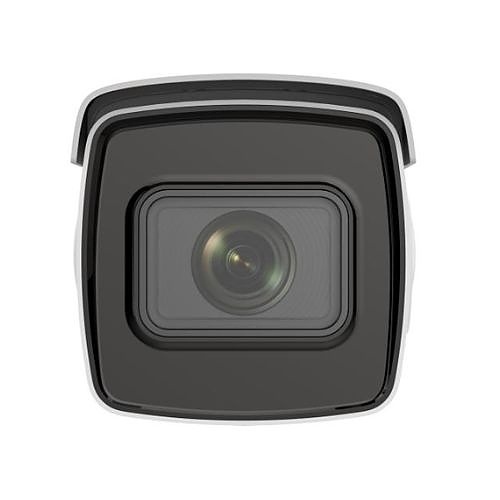

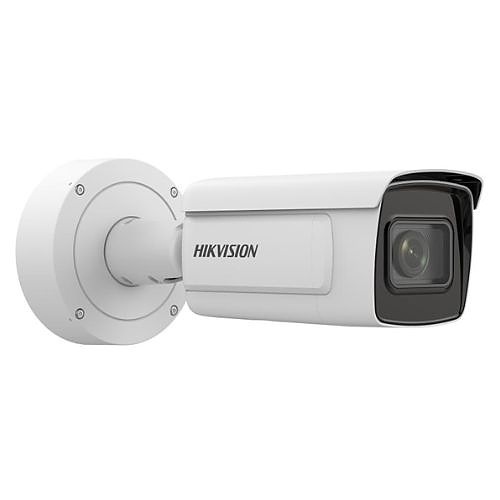

4MP DeepinView ANPR Moto Varifocal Bullet Camera

Product Type

Bullet Cameras

weight

1.95 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Diagonal: 49.6° to 17.3°, Horizontal: 42.5° to 15.1°, Vertical: 23.3° to 8.64°

Lens Type

Varifocal

Maximum Aperture

f/1.7

Maximum Frame Rate

60 fps

Minimum Focal Length

8mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

4x

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Night Vision Distance

100 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1 s

Minimum Illumination

0.0005 lux|0.0001 lux|0 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

8-32 mm

Lens Included

Yes

Maximum Focal Length

32 mm

Minimum Aperture

f/1.73

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Bullet

Power Description

Input Voltage

12V DC

Product Information

Diameter

144 mm

Length

351 mm

Mount Type

Corner Mount, Pendant Mount, Pole Mount, Vertical Mount

Storage

Storage Type

Memory Card

Video

Analog Video Signal Format

CVBS

Miscellaneous

Environmental Certification

CE-RoHS, REACH, WEEE

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Highlight Compensation (HLC), Motion Detection, Region of Interest, Tampering Alarm, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10

Hikvision IDS-2CD7A46G0/P-IZHSY,8-32MM,C 4MP DeepinView ANPR Bullet Camera, 8-32mm Moto Varifocal Lens, WDR 140 dB, IP67, IK10
