General Information

ADI Part Number

311318336

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2D45G1/M-D/NF(4MM)

Product Model

DS-2CD2D45G1/M-D/NF(4MM)

Product Name

Covert Network Camera

Product Series

Special

Product Type

Network Camera

weight

93 g

Technical Information

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/2.0

Maximum Frame Rate

30 fps

Minimum Focal Length

4mm

Video Resolution

2560 x 1440

Video Signal Format

H.264, H.265, MJPEG

Wide Dynamic Range

Yes

Certifications

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2560 x 1440

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.005 lux

Shortest Shutter Speed

1/100000 Second

Lens

Focal Length

4 mm

Lens Included

Yes

Maximum Focal Length

4 mm

Power Description

Input Voltage

12V DC

Product Information

Mount Type

M12 Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

CE-ROHS, REACH, UL Listed, WEEE

Environmentally Friendly

Yes

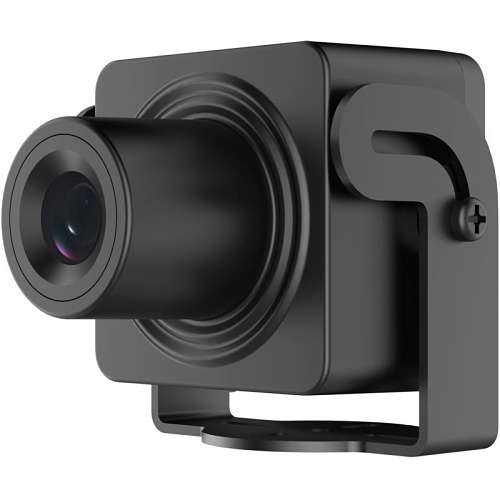

Hikvision DS-2CD2D45G1/M-D/NF(4MM) Special Series Covert IP Camera, 4mm Lens
