General Information

ADI Part Number

311318137

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2543G2-IS(2.8MM)(BLACK)

Product Line

PRO

Product Model

DS-2CD2543G2-IS(2.8MM)(BLACK)

Product Name

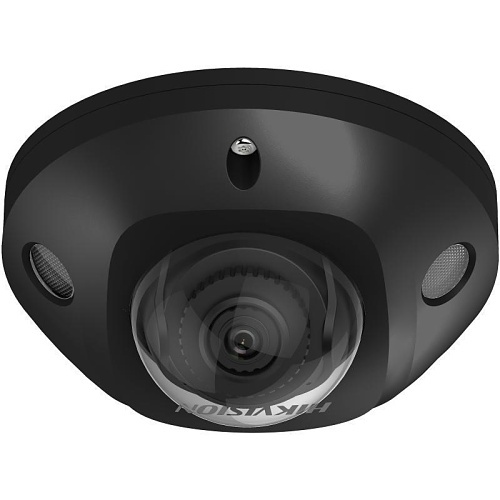

4 MP AcuSense Built-in Mic Fixed Mini Dome Network Camera

Product Series

Pro

Product Type

Network Camera

weight

380 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.264 (MP), H.264 BP, H.264 HP, H.264+, H.265, H.265 (MP), H.265+, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

-60°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 s

Minimum Illumination

0.005 lux|0 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

Black

Durability

Dust Resistant, Vandal Resistant, Water Resistant

Form Factor

Mini Dome

Power Description

Input Voltage

12V DC

Product Information

Diameter

110 mm

Mount Type

Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Vertical Mount, Wall Mount

Storage

Storage Type

Cloud, Memory Card

Miscellaneous

Environmental Certification

CE-RoHS (2011/65/EU), Reach (Regulation (EC) No 1907/2006), WEEE (2012/19/EU)

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Audio Compression, Back Light Compensation (BLC), Built-in Microphone, Cross Line Detection, Day/Night, Face Detection, Highlight Compensation (HLC), HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Tampering Alarm, White Balance, Wide Dynamic Range

Impact Protection Rating

IK08

Hikvision DS-2CD2543G2-IS(2.8MM)(BLACK) Pro Series 4MP AcuSense Built-In Mic Fixed Mini Dome IP Camera, 2.8mm Lens, IP67, IK08, Black
