General Information

ADI Part Number

311317005

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2E43G2-U(4mm)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2E43G2-U(4MM)

Product Name

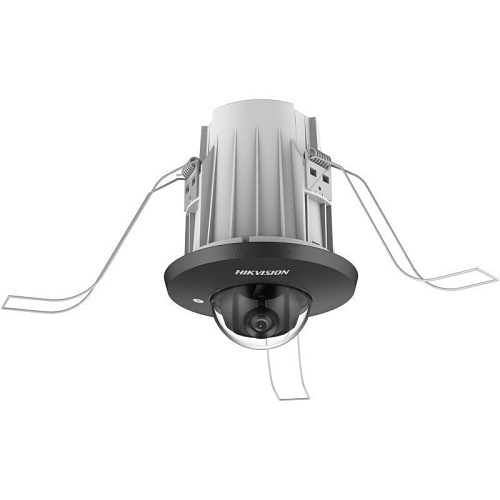

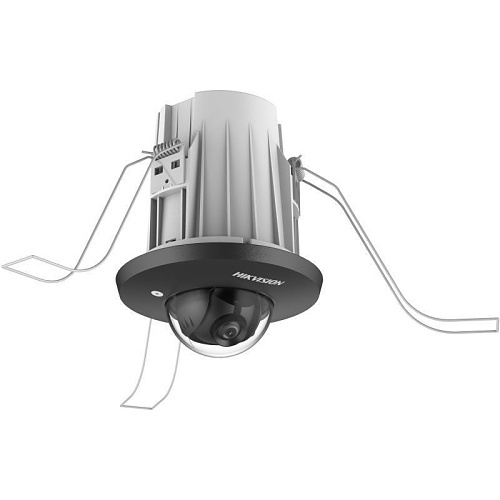

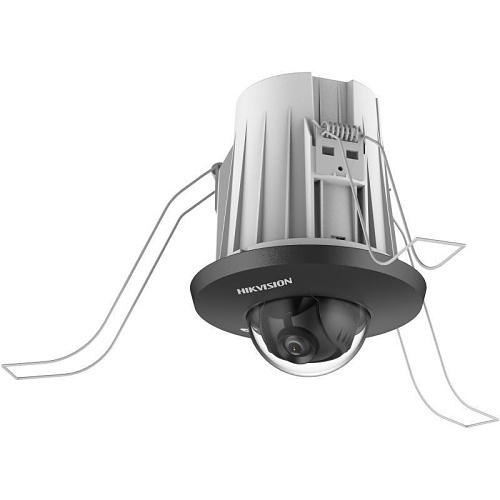

4 MP AcuSense In-Ceiling Fixed Mini Dome Network Camera

Product Series

EasyIP 2.0 Plus with AcuSense

Product Type

Network Camera

weight

0.155 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Diagonal: 100°, Horizontal: 84°, Vertical: 43°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

4mm

Video Formats

H.264, H.264 (MP), H.264 BP, H.264 HP, H.264+, H.265, H.265 (MP), H.265+, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Certifications

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

-50°C

Minimum Operating Temperature

-10°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 s

Minimum Illumination

0.005 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

4mm

Lens Included

Yes

Maximum Focal Length

4 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Form Factor

Mini Dome

Power Description

Input Voltage

12V DC

Product Information

Diameter

93.9 mm

Length

117.5 mm

Mount Type

In-Ceiling Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

CE-RoHS (2011/65/EU), Reach (Regulation (EC) No 1907/2006), WEEE (2012/19/EU)

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Back Light Compensation (BLC), Built-in Microphone, Cross Line Detection, Day/Night, Face Detection, Highlight Compensation (HLC), HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Region of Interest

Hikvision DS-2CD2E43G2-U(4MM) Pro Series 4MP AcuSense In-Ceiling Mini Dome IP Camera, 4mm Fixed Focal Lens
