General Information

ADI Part Number

311316393

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2746G2-IZS(2.8-12MM)(C)(BLACK

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2746G2-IZS

Product Name

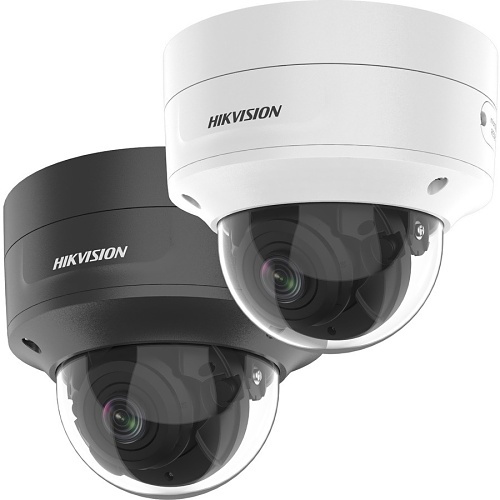

4 MP AcuSense Motorized Varifocal Dome Network Camera

Product Series

EasyIP 4.0 with AcuSense

Product Type

Dome Cameras

weight

845 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Diagonal, Horizontal, Vertical

Lens Type

Motorised

Maximum Aperture

f/1.4

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

4.3x

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.003 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8-12 mm

Lens Included

Yes

Maximum Focal Length

12 mm

Physical Characteristics

Color

Black

Durability

Dust Resistant, Vandal Resistant, Water Resistant

Form Factor

Dome

Power Description

Input Voltage

12V DC

Product Information

Diameter

153.5 mm

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

DarkFighter

Impact Protection Rating

IK10

Hikvision DS-2CD2746G2-IZS Pro Serie, AcuSense 4MP, Camera IP Dome, 2.8-12mm Varifocal Lens, Black
