General Information

ADI Part Number

311315989

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2T83G2-4I(4mm)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2T83G2-4I(4MM)

Product Name

8 MP AcuSense Fixed Bullet Network Camera

Product Series

EasyIP 2.0 Plus with AcuSense

Product Type

Network Camera

weight

1090 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.264 (MP), H.264 BP, H.264 HP, H.264+, H.265, H.265 (MP), H.265+, Motion JPEG

Video Resolution

3840 x 2160

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

8 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 s

Minimum Illumination

0.005 lux|0 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

4mm

Lens Included

Yes

Maximum Focal Length

6 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Bullet

Power Description

Input Voltage

12V DC

Product Information

Diameter

105 mm

Length

299.7 mm

Mount Type

Corner Mount, Junction Box Mount, Pole Mount, Vertical Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Miscellaneous

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Highlight Compensation (HLC), Motion Detection, Region of Interest, Tamper Detection, White Balance, Wide Dynamic Range

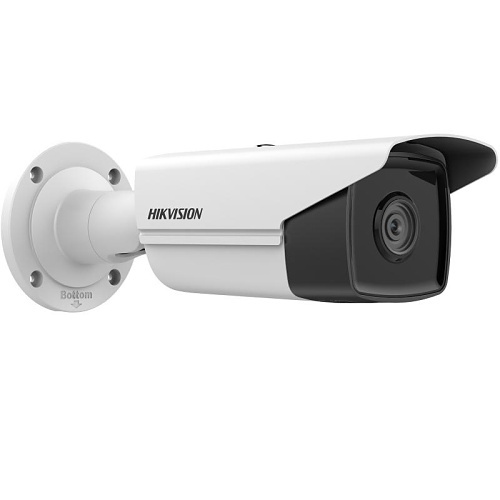

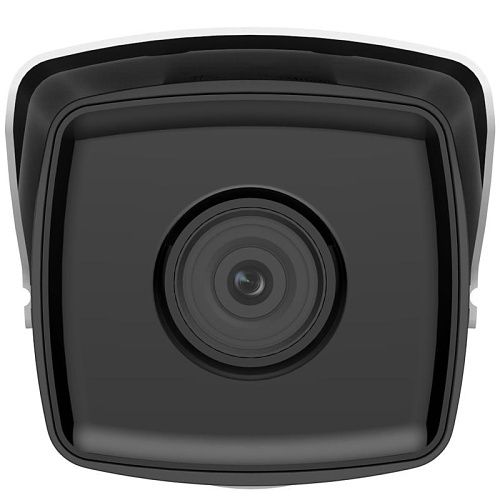

Hikvision DS-2CD2T83G2-4I(4MM) AcuSense 8MP Fixed Bullet IP Camera with 4mm Focal Lens, IR 50m, White
