General Information

ADI Part Number

311315966

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2183G2-IU(2.8mm)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2183G2-IU(2.8MM)

Product Name

8 MP AcuSense Vandal Fixed Dome Network Camera

Product Series

EasyIP 2.0 Plus with AcuSense

Product Type

Network Camera

weight

550 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.264 (MP), H.264 BP, H.264 HP, H.264+, H.265, H.265 (MP), H.265+, Motion JPEG

Video Resolution

3840 x 2160

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 s

Minimum Illumination

0.005 lux|0 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8mm

Lens Included

Yes

Maximum Focal Length

4 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Dust Resistant, Vandal Resistant, Water Resistant

Form Factor

Dome

Power Description

Input Voltage

12V DC

Product Information

Diameter

121.4 mm

Length

92.2 mm

Mount Type

Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Miscellaneous

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Highlight Compensation (HLC), HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Region of Interest, SD Card Local Storage, Wide Dynamic Range

Impact Protection Rating

IK10

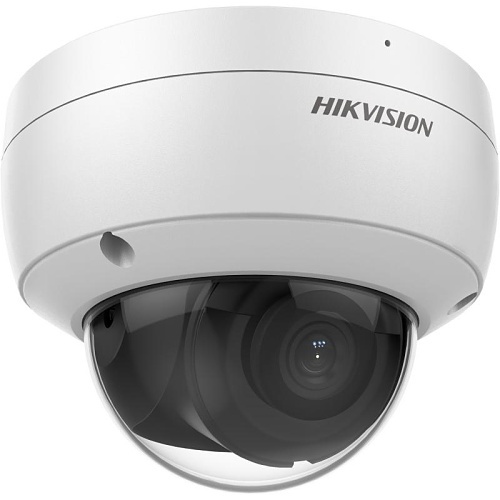

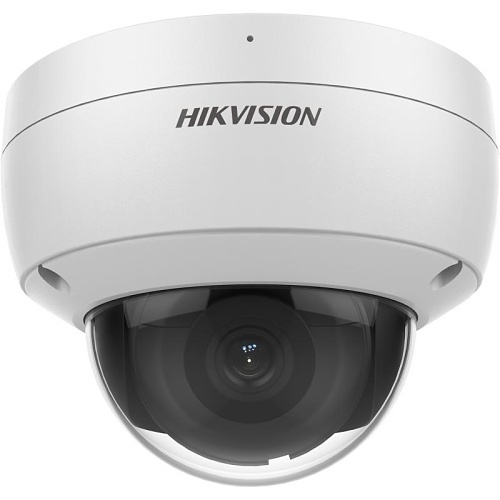

Hikvision DS-2CD2183G2-IU(2.8MM) AcuSense 8MP Vandal Fixed Dome IP Camera with 2.8mm Focal Lens, VR Mic, IR 30m, White
