General Information

ADI Part Number

311312924

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2383G2-IU(2.8mm)(BLACK)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2383G2-I(U)

Product Name

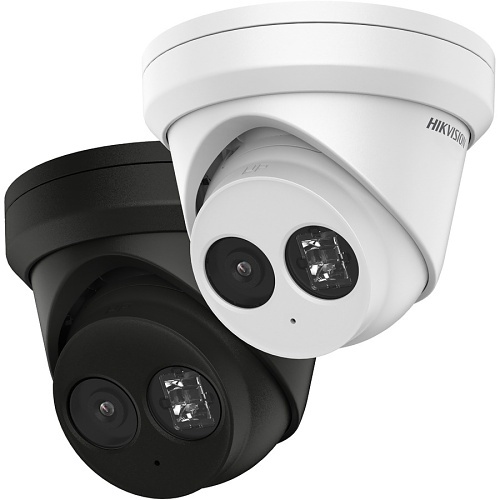

8 MP AcuSense Fixed Turret Network Camera

Product Series

EasyIP 2.0 Plus with AcuSense

Product Type

Turret Cameras

weight

600 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

F/1.6

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared

Wide Dynamic Range

Yes

Camera

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.005 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8 mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Color

Black

Durability

Dust Resistant, Water Resistant

Form Factor

Eyeball

Power Description

Input Voltage

12V DC

Product Information

Diameter

127.3 mm

Mount Type

Corner Mount, In-ceiling, Junction Box Mount, Pendant Mount, Pole Mount, Vertical Mount, Wall Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Miscellaneous

Environmental Certification

CE, REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

AcuSense

Hikvision DS-2CD2383G2-I Pro Series, AcuSense IP67 4K 2.8mm Fixed Lens, IR 30M IP Turret Camera, Black
