General Information

ADI Part Number

311312376

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

IDS-2CD7AC5G0-IZHSY(8-32MM)

Product Line

DeepinView

Product Model

IDS-2CD7AC5G0-IZHSY(8-32MM)

Product Name

12MP DeepinView Moto Varifocal Bullet Camera

Product Type

Bullet Cameras

weight

1.92 kg

Technical Information

Effective Camera Resolution

12MP

Field of View

Diagonal: 51.47° to 17.8°, Horizontal: 40.2° to 14.4°, Vertical: 29.6° to 10.8°

Lens Type

Varifocal

Maximum Aperture

f/1.7

Maximum Frame Rate

30 fps

Minimum Focal Length

8mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

4x

Video Formats

H.264, H.264+, H.265, H.265+, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

100 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

4000 x 3000

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1 s

Minimum Illumination

0.009 lux|0.0009 lux

Shortest Shutter Speed

1/100000 s

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

8-32mm

Lens Included

Yes

Maximum Focal Length

32 mm

Minimum Aperture

f/1.73

Physical Characteristics

Durability

Dust Resistant

Form Factor

Bullet

Power Description

Input Voltage

12V DC

Product Information

Diameter

140 mm

Length

351 mm

Mount Type

Corner Mount, Pole Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmental Certification

CE-RoHS, REACH, WEEE

Environmentally Friendly

Yes

Impact Protection Rating

IK10

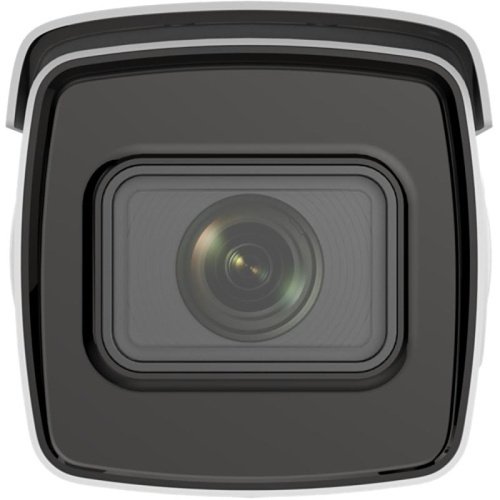

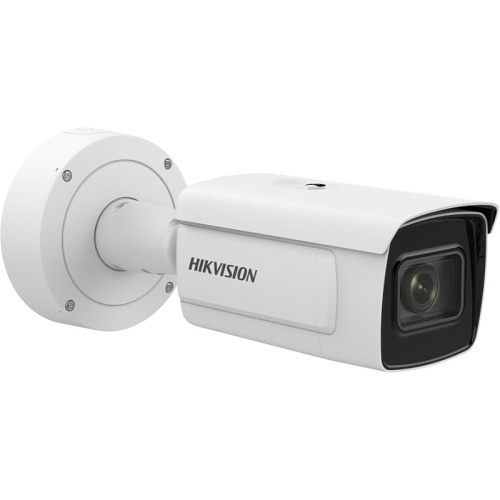

Hikvision IDS-2CD7AC5G0-IZHSY(8-32MM) 12MP DeepinView Bullet Camera, 8-32mm Moto Varifocal Lens, IP67, IK10
