General Information

ADI Part Number

305402600

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

HM-TX3840-15/G0/T1

Product Model

HM-TX3840-15/G0/T1

Product Name

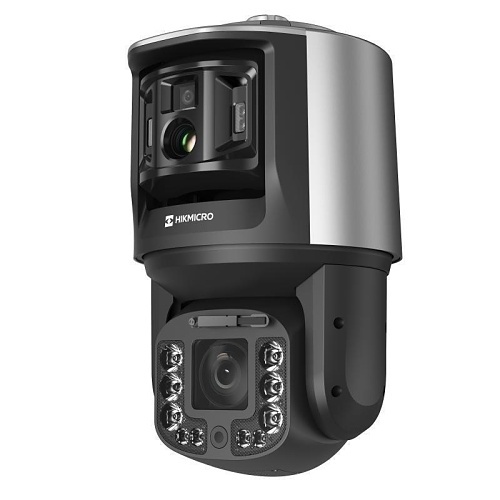

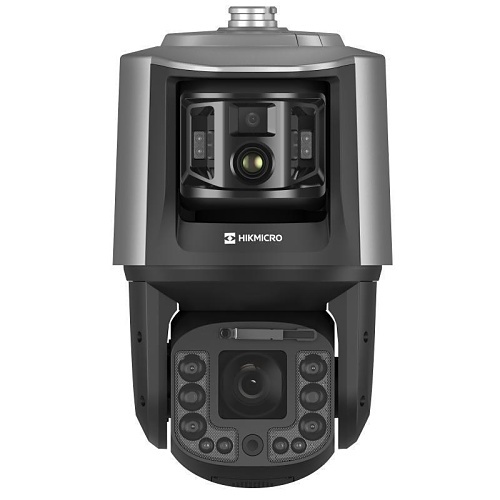

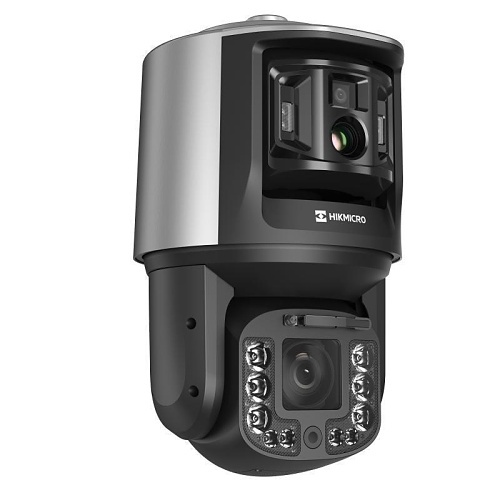

HM-TX3840-15/G0/T1 Thermal Smart Linkage Tracking System

Product Type

Network Camera

weight

13.5 kg

Technical Information

Effective Camera Resolution

4MP

Field of View

Horizontal: 18.1° Vertical: 13.9°, Horizontal: 39.4° Vertical: 21.96°

Maximum Aperture

f/1.0

Maximum Frame Rate

30 fps

Minimum Focal Length

6mm

Optical Zoom

40x

Video Formats

H.264, H.265, MJPEG

Video Resolution

2688 x 1520

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Operating Humidity

0.9

Exposure

Minimum Illumination

0.005 lux

Lens

Focal Length

6-240mm, 8mm

Lens Included

Yes

Maximum Focal Length

240 mm

Maximum Thermal Focal Length

15.4mm

Power Description

Input Voltage

24V AC, 36V DC

Miscellaneous

Features

384 x 288 resolution thermal image, high sensitivity sensor, adjustable contrast, Built-in speakers to provide audible alarms and LED to provide whitelight supplement, High quality imaging with 4MP optical PTZ and 40X optical zoom, Multi-lens synergy within integrated design provide easy deployment, Thermal image processing Adaptive AGC, DDE, 3D DNR, NETD 25 mK (at 25 Â°C,F 1.0)

Hikvision HM-TX3840-15/G0/T1 4MP Thermal Smart Linkage Tracking System, 15mm
