General Information

ADI Part Number

3.0C-H6SL-D1

Brand Name

Avigilon Unity

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

3.0C-H6SL-D1

Product Colour

White

Product Line

Unity

Product Model

3.0C-H6SL-D1

Product Name

H6SL 3.0C-H6SL-D1 Network Camera

Product Series

H6SL

Product Type

Network Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

3MP

Field of View

Horizontal: 95°-28°, Vertical: 69°-21°

HD Recording

Yes

Lens Type

Varifocal

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

3.40 mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

3.1x

Wide Dynamic Range

Yes

Camera

Night Vision Distance

40 m

Certifications

Ingress Protection Rating

IP52, IP67

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Color Supported

Colour, Monochrome

Maximum Video Resolution

2048 x 1536

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-10°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/7.5 Second

Minimum Illumination

0.02 lux

Shortest Shutter Speed

1/30000 Second

Interfaces/Ports

HDMI

No

Network (RJ-45)

Yes

Lens

Focal Length

3.4-10.5 mm

Lens Included

Yes

Maximum Focal Length

10.50 mm

Physical Characteristics

Color

White

Color Family

White

Depth

174 mm

Durability

Corrosion Resistant, Dust Resistant, Impact Resistant, Water Resistant

Form Factor

Dome

Height

165 mm

Weight (Approximate)

0.80 kg

Width

165 mm

Power Description

Input Voltage

12V DC

Storage

Recording Formats

HD

Storage Type

Memory Card

Video

Horizontal Resolution

2048

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

RoHS

Environmentally Friendly

Yes

Features

Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Day/Night, Motion Detection, Multi-view Stream, SD Card Local Storage, Video Management System, White Balance, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor

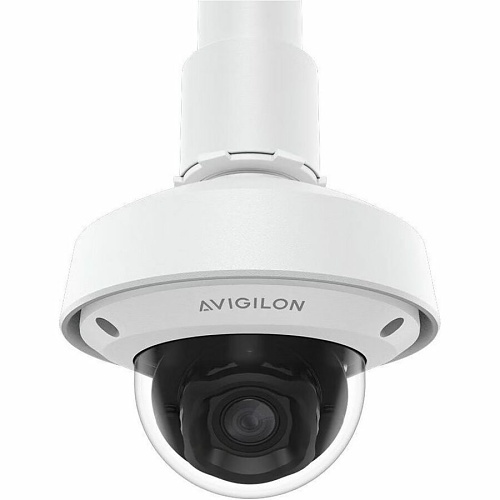

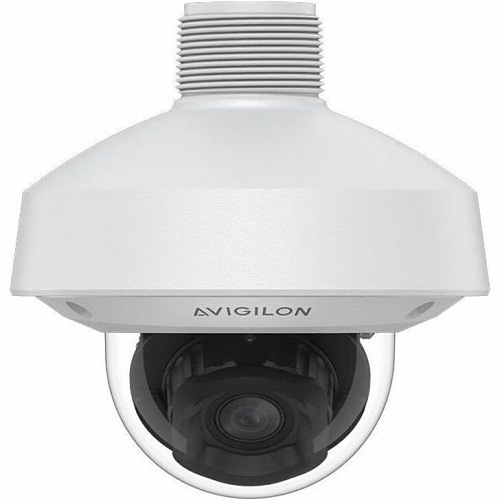

Avigilon Unity 3.0C-H6SL-D1 3MP Indoor IP Dome Camera, 3.4-10.5mm Lens, IP67, White
