General Information

ADI Part Number

2.0C-H6A-PTZ-DP30

Brand Name

Avigilon Unity

Manufacturer

Avigilon Unity

Manufacturer Part Number

2.0C-H6A-PTZ-DP30

Product Model

2.0C-H6A-PTZ-DP30

Product Name

CAM, H6A PTZ, Pendant, 2MP, 30X

Product Type

Dome Camera

weight

4.25 kg

Technical Information

Effective Camera Resolution

2MP

Field of View

Horizontal: 58.1-2.3°, Vertical: 34.8-1.4°

Lens Type

Varifocal, Zoom

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

6.5 mm

Optical Zoom

30x

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

140°C

Minimum Operating Temperature

14°C

Operating Humidity

100%

Exposure

Longest Shutter Speed

1/1 s

Minimum Illumination

0.1 lux|0.06 lux

Shortest Shutter Speed

1/10000 s

Lens

Focal Length

6.5-162.5 mm

Lens Included

Yes

Maximum Focal Length

162.5 mm

Minimum Aperture

f/4.8

Physical Characteristics

Height

242 mm

Width

242 mm

Power Description

Input Voltage

24V AC, 24V DC

Product Information

Length

303 mm

Miscellaneous

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor, Outdoor

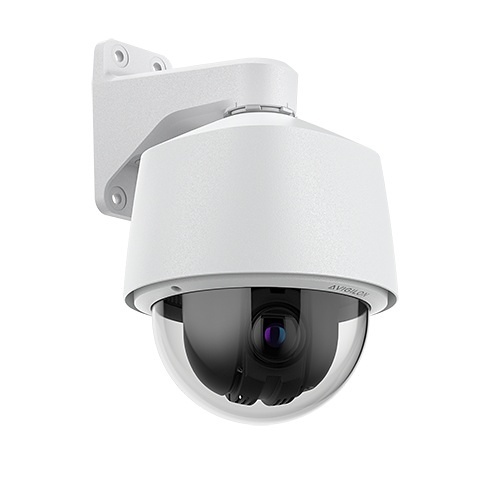

Avigilon Unity 2.0C-H6A-PTZ-DP30 2MP H6A PTZ Camera, Pendant
