General Information

ADI Part Number

02944-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02944-001

Product Model

P4708-PLVE

Product Name

AXIS P4708-PLVE

Product Type

Fixed dome cameras

weight

975 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

Horizontal, Vertical

Lens Type

Varifocal

Maximum Aperture

f/1.9

Maximum Frame Rate

30 fps

Minimum Focal Length

3.2mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

2.5x

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Night Vision Distance

15 m

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Out of Scope

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

3840 x 2160

Number of Sensors

2

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-30°C

Operating Humidity

100%

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/16000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.26-8.12mm

Lens Included

Yes

Maximum Focal Length

8.10 mm

Minimum Aperture

f/3.2

Physical Characteristics

Color

Black

Durability

Vandal Resistant

Form Factor

Dome

Material

Plastic

Product Information

Mount Type

Bracket Mount, Junction Box Mount, Tripod Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 512.6)

Features

2D Noise Reduction, 3D Noise Reduction, Auto Gain Control, Cross Line Detection, Day/Night, Face Detection, Forensic WDR, Human Detection, Privacy Masking, Vehicle Detection

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

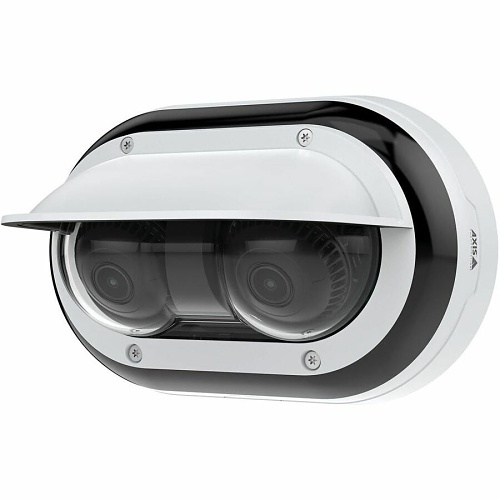

AXIS P4708-PLVE 2x8MP Panoramic Camera
