General Information

ADI Part Number

02864-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02864-001

Product Model

P9117-PV

Product Name

AXIS P9117-PV

Product Type

Fixed dome cameras

Technical Information

Effective Camera Resolution

6MP

Field of View

Horizontal, Vertical

Maximum Aperture

f/2.2

Maximum Frame Rate

60 fps

Night Vision

Yes

Wide Dynamic Range

Yes

Certifications

CE Marking

Yes

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2160 x 2160

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-15°C

Exposure

Minimum Illumination

0.04 lux

Lens

Focal Length

1.1mm

Maximum Focal Length

1.1 mm

Physical Characteristics

Durability

Vandal Resistant

Video

Horizontal Resolution

2160

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60721-3-5 Class 5M3 (Vibration, Shock), IEC/EN 60529 IP66, IEC/EN 62262 IK10

Features

6 MP with Stereographic Lens, Built-in cybersecurity with Axis Edge Vault, Built-in Microphone and AXIS Audio Analytics, Full Coverage and No Blind Spots, Vandal-Resistant (IK10) and IP66-rated Dust Protection

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor, Outdoor

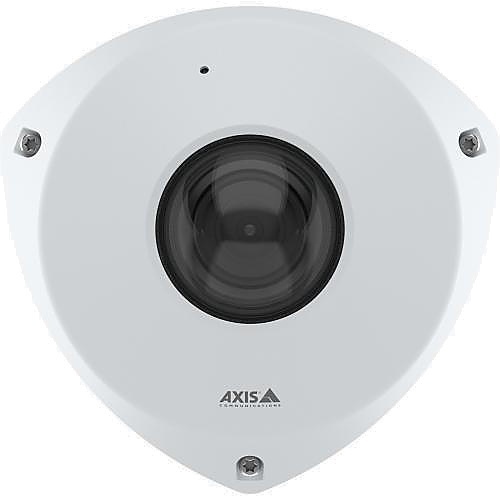

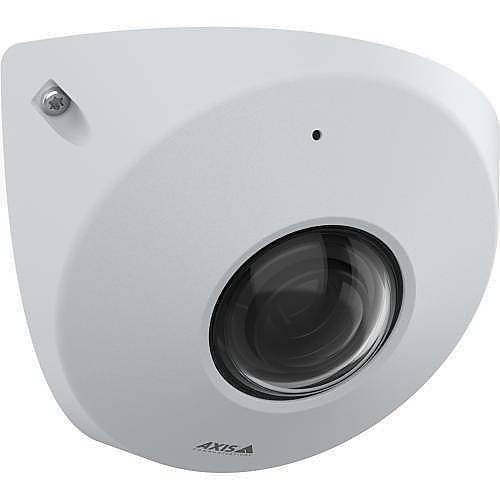

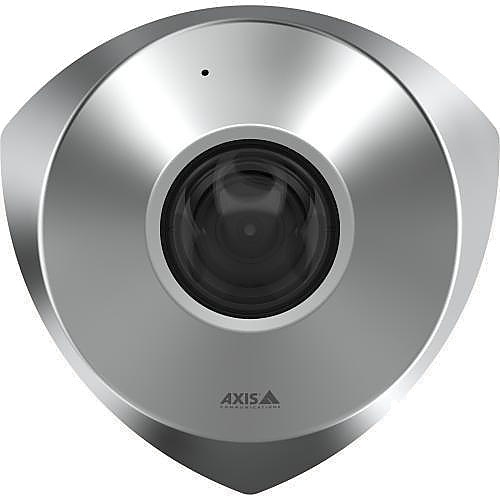

AXIS P9117-PV Indoor Corner Mount Camera
