General Information

ADI Part Number

02768-021

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02768-021

Packaged Quantity

4

Product Model

M5526-E

Product Name

M5526-E PTZ Camera

Product Series

M55

Product Type

Network Camera

weight

1 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Horizontal: 59.1°-6.5°, Vertical: 35°-3.67°

Lens Type

Varifocal

Maximum Aperture

f/1.6

Maximum Frame Rate

60 fps

Minimum Focal Length

4.7mm

Optical Zoom

10x

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Out of Scope

Display & Graphics

Maximum Video Resolution

2668 x 1512

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-20°C

Operating Humidity

100%

Exposure

Longest Shutter Speed

0.2 Second

Minimum Illumination

0.25 lux|0.01 lux

Shortest Shutter Speed

1/27000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Lens Included

Yes

Maximum Focal Length

47 mm

Minimum Aperture

f/3

Physical Characteristics

Color

Black, White

Durability

Vandal Resistant

Form Factor

Dome

Power Description

Input Voltage

20V DC, 28V DC

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Features

3D Noise Reduction, Day/Night, HTTPS Encryption, Ingress Protection, Noise Reduction, Password Protection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range

Impact Protection Rating

IK09

Indoor/Outdoor

Indoor, Outdoor

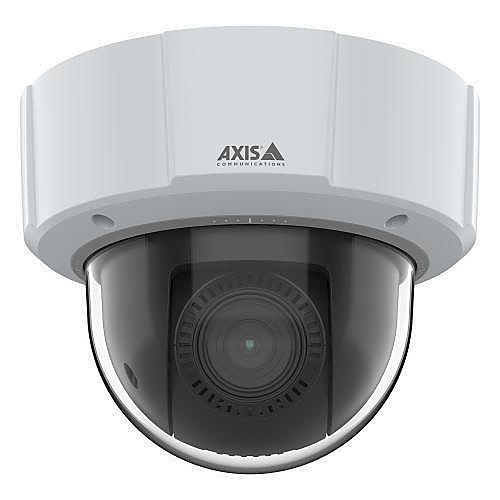

AXIS M5526-E 4MP Indoor and Outdoor PTZ Camera with 10x Zoom and Focus Recall
