General Information

ADI Part Number

02736-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02736-001

Product Model

02736-001

Product Name

AXIS P1387-LE

Product Series

P13

Product Type

Fixed cameras

weight

2.47 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Horizontal, Vertical

Lens Mount Type

i-CS

Lens Type

Varifocal

Maximum Aperture

f/1.4

Maximum Frame Rate

60 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

4.6x

Video Formats

H.264B, H.264B (MPEG-4 Part 10/AVC), H.264H, H.264H (MPEG-4 Part 10/AVC), H.264M, H.264M (MPEG-4 Part 10/AVC), H.265, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG, Zipstream

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

50 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

2592 x 1944

Environmental Conditions

Maximum Operating Temperature

60 °C

Minimum Operating Temperature

-40°C

Operating Humidity

100%

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0.02 lux

Shortest Shutter Speed

1/66500 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8-13mm

Lens Included

Yes

Maximum Focal Length

13 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Impact Resistant, Rain Resistant, Snow Resistant, Vandal Resistant

Form Factor

Box

Power Description

Input Voltage

10V DC, 28V DC

Product Information

Mount Type

Wall Mount

Storage

Storage Type

Memory Card

Miscellaneous

Country of Origin

PL

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features

Audio Detection, Built-in IR LED, Built-in Memory, Day/Night, Electronic Image Stabilization, Human Detection, Motion Detection, SD Card Local Storage, Smart Object Detection, Vehicle Detection, Video Management System, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

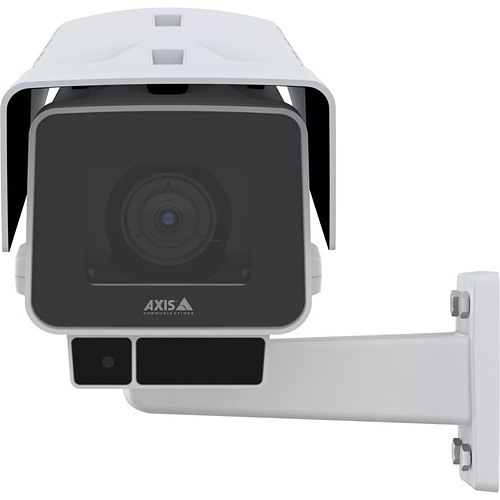

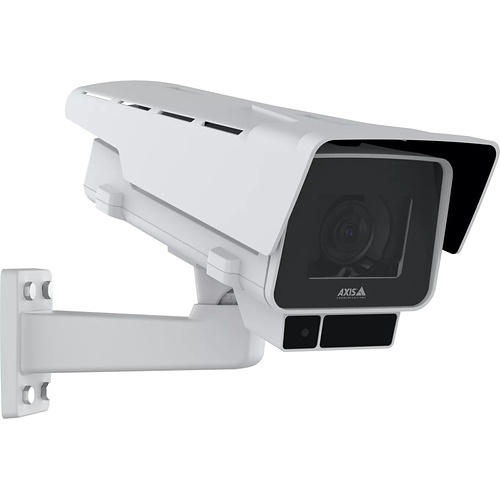

AXIS P1387-LE 5MP Outdoor Day/Night Box Camera, 2.8-13mm Varifocal Lens, White
