General Information

ADI Part Number

02637-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02637-001

Product Model

M4328-P

Product Name

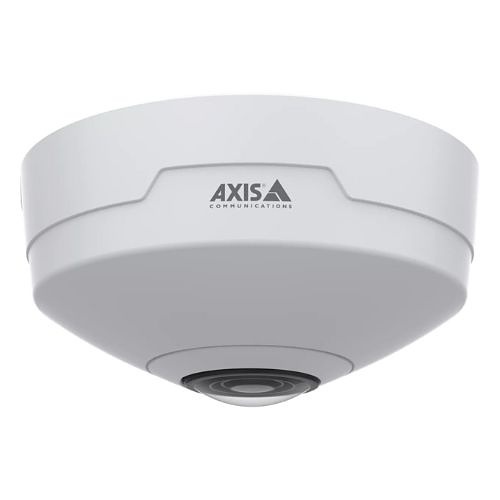

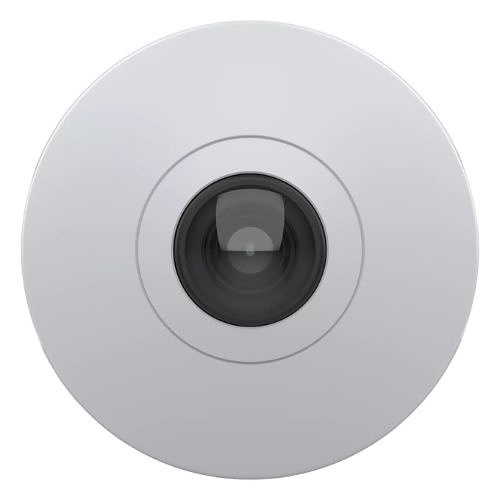

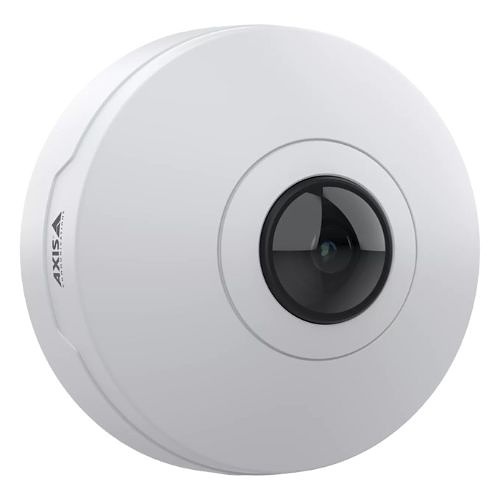

M4328-P Panoramic Camera

Product Series

M43

Product Type

Panoramic Cameras

weight

300 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

12MP

Field of View

Horizontal: 182°, Vertical: 182°

Lens Type

Fixed

Maximum Aperture

f/2.2

Maximum Frame Rate

30 fps

Minimum Focal Length

1.2mm

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Certifications

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

40°C

Minimum Operating Temperature

0°C

Operating Humidity

85%

Exposure

Longest Shutter Speed

1/2 Second

Minimum Illumination

0.19 lux|0.04 lux

Shortest Shutter Speed

1/8100 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

1.2 mm

Lens Included

Yes

Maximum Focal Length

1.20 mm

Physical Characteristics

Color

White

Form Factor

Fisheye

Height

51 mm

Product Information

Diameter

101 mm

Mount Type

Bracket Mount, Junction Box Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

REACH, RoHS

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Highlight Compensation (HLC), Human Detection, Mirror, Motion Detection, Noise Detection, Password Protection, Vehicle Detection, Wide Dynamic Range

Indoor/Outdoor

Indoor

Package Contents

M4328-P Panoramic Camera
Installation Guide
Owner authentication key

AXIS M4328-P M43 Series, 12MP Panoramic Camera, 1.2mm Fixed Lens, White
