General Information

ADI Part Number

02508-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02508-001

Product Model

Q1808-LE

Product Name

AXIS Q1808-LE 150MM

Product Type

Fixed cameras

weight

3.20 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

Horizontal, Vertical

Lens Type

Varifocal

Maximum Aperture

f/4

Maximum Frame Rate

60 fps

Minimum Focal Length

50mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

30x

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Night Vision Distance

120 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

3712 x 2784

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

100%

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/45500 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

50-150mm

Lens Included

Yes

Maximum Focal Length

150 mm

Physical Characteristics

Color

White

Durability

Impact Resistant

Form Factor

Bullet

Power Description

Input Voltage

10V DC, 20V AC, 24V AC, 28V DC

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Environmentally Friendly

Yes

Features

Audio Compression, Day/Night, HTTPS Encryption, Motion Detection, Multi-view Stream, Privacy Masking, PTZ, Video Management System, White Balance, Wide Dynamic Range

Impact Protection Rating

IK08, IK10

Indoor/Outdoor

Outdoor

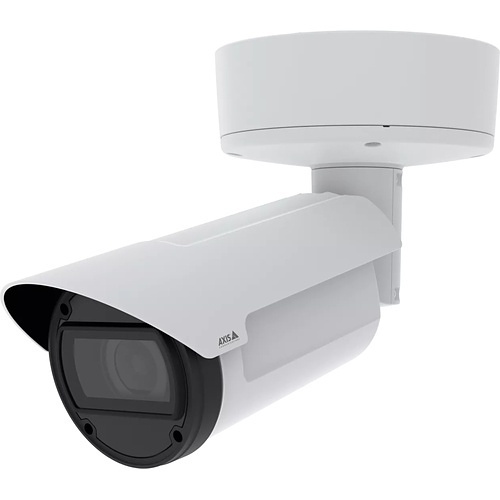

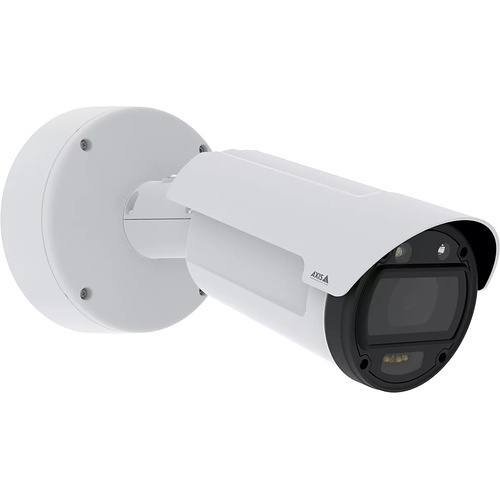

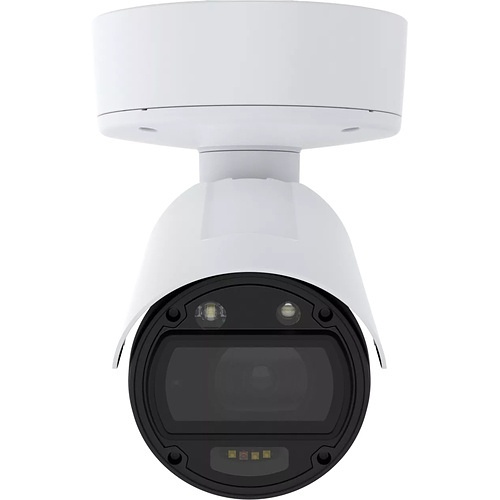

AXIS Q1808-LE 10MP Bullet Surveillance Camera, 32x Zoom, Lens 50-150 mm
