General Information

ADI Part Number

02506-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02506-001

Product Model

Q1806-LE

Product Name

AXIS Q1806-LE

Product Type

Fixed cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Horizontal, Vertical

Lens Type

Varifocal

Maximum Frame Rate

90 fps

Minimum Focal Length

4.3mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

32x

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

100 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2880 x 1620

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Exposure

Minimum Illumination

0 lux

Lens

Focal Length

4.3-137mm

Maximum Focal Length

138 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Form Factor

Bullet

Storage

Storage Type

Memory Card

Miscellaneous

Country of Origin

PL

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features

AI Analytics, Auto Image Stabilizer, Built-in IR LED, Day/Night, Wide Dynamic Range

Impact Protection Rating

IK08, IK10

Indoor/Outdoor

Outdoor

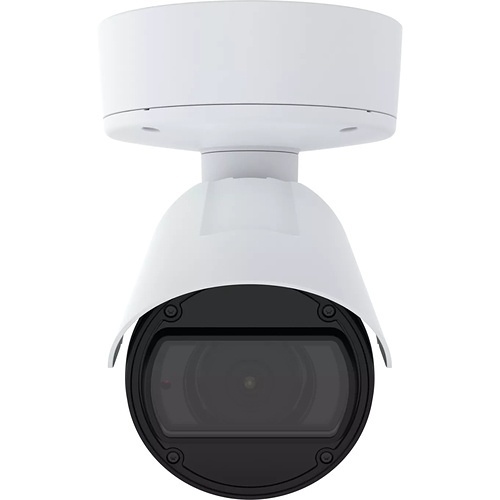

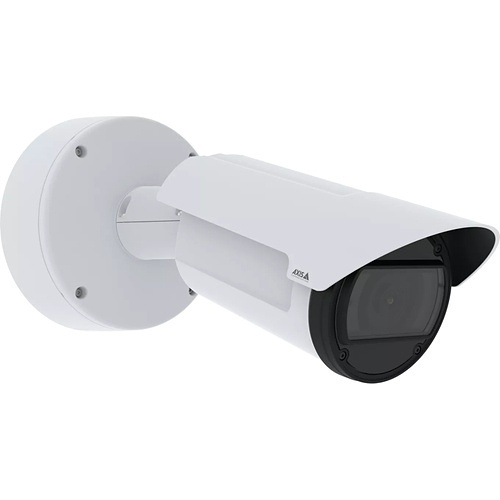

AXIS Q1806-LE 4MP Outdoor Bullet Camera, 32x Zoom, 90fps, Day/Night, IR LEDs
