General Information

ADI Part Number

02350-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02350-001

Product Model

M1075-L

Product Name

AXIS M1075-L BOX CAMERA

Product Series

M10

Product Type

Fixed cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared

Wide Dynamic Range

Yes

Certifications

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

35°C

Minimum Operating Temperature

0°C

Exposure

Minimum Illumination

0 lux

Interfaces/Ports

HDMI

Yes

Network (RJ-45)

Yes

Lens

Focal Length

3.16mm

Physical Characteristics

Color

White

Form Factor

Cube

Product Information

Mount Type

M12

Storage

Recording Formats

Full HD

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78

Features

Built-in Microphone, Built-in Speaker, Day/Night, Motion Detection, Motion Sensor, SD Card Local Storage, Tampering Alarm, Wide Dynamic Range

Indoor/Outdoor

Indoor

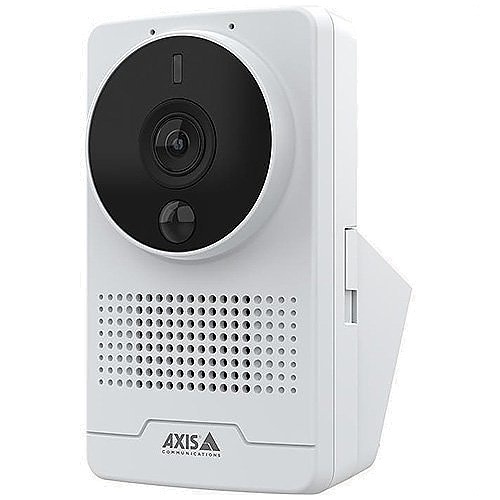

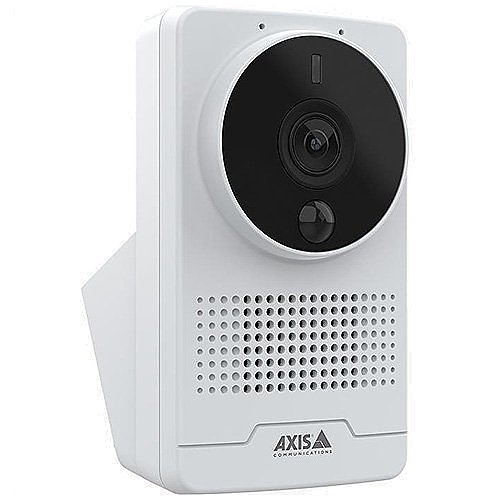

AXIS M1075-L M10 Series, Zipstream IP Box Camera, 3.6mm Fixed Lens, IR 18M, White
