General Information

ADI Part Number

02161-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02161-001

Product Model

Q1951-E

Product Name

AXIS Q1952-E 35mm 8.3 fps

Product Series

Q19

Product Type

Thermal cameras

Technical Information

Field of View

Horizontal, Vertical

Lens Type

Fixed

Maximum Frame Rate

8.3 fps

Minimum Focal Length

35mm

Camera

Image Sensor Type

Uncooled Microbolometer

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

800 x 600

Lens

Focal Length

35mm

Maximum Focal Length

35 mm

Physical Characteristics

Color

White

Durability

Water Proof

Product Information

Mount Type

TA

Miscellaneous

Country of Origin

PL

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 510.7), MIL-STD-810H (Method 514.8), MIL-STD-810H (Method 516.8), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

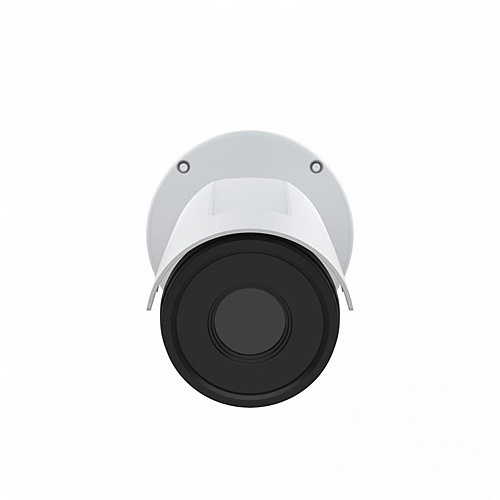

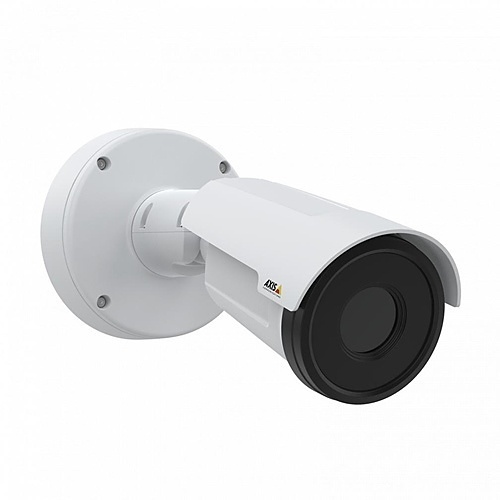

AXIS Q1952-E Q19 Series, Thermal IP Bullet Camera, 35mm Lens, 8.3fps, IP67, White
