General Information

ADI Part Number

02018-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02018-001

Product Model

M3077

Product Name

AXIS M3077-PLVE

Product Series

M30

Product Type

Fixed dome cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

6MP

Field of View

Horizontal, Vertical

HD Recording

Yes

Lens Type

Fixed

Maximum Aperture

f/2

Maximum Frame Rate

60 fps

Night Vision

Yes

Night Vision Type

Infrared

Wide Dynamic Range

Yes

Camera

Night Vision Distance

20 m

Certifications

CE Marking

Yes

Ingress Protection Rating

IP66

NDAA Compliant

Yes

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

2016 x 2016

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-40°C

Operating Humidity

100%

Exposure

Longest Shutter Speed

1 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/16000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

1.56mm

Lens Included

Yes

Maximum Focal Length

1.56 mm

Physical Characteristics

Color

White

Color Family

White

Depth

14.9 cm

Durability

Vandal Resistant

Form Factor

Dome

Height

66 mm

Weight (Approximate)

700 g

Width

14.9 cm

Product Information

Diameter

149 mm

Mount Type

Ceiling Mount, Conduit Mount, Corner Mount, Lighting Track Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60721-3-5 Class 5M3, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features

Audio Detection, Auto Gain Control, Automatic White Balance, Built-in IR LED, Built-in Microphone, Day/Night, Motion Detection, Multi-view Stream, Noise Reduction, Privacy Masking, PTZ, Removable IR Cut-off Filter, SD Card Local Storage, Tampering Alarm, Video Management System, Wide Dynamic Range

Impact Protection Rating

IK08

Indoor/Outdoor

Outdoor

Package Contents

M3077-PLVE Network Camera
Installation Guide
Windows Decoder 1-user license
Drill Hole Template
Cable Gaskets
Connector Guard
I/O Connector
RESISTORX TR20 bit

,

Mounting Bracket
Cable Hole Lid
View Protector

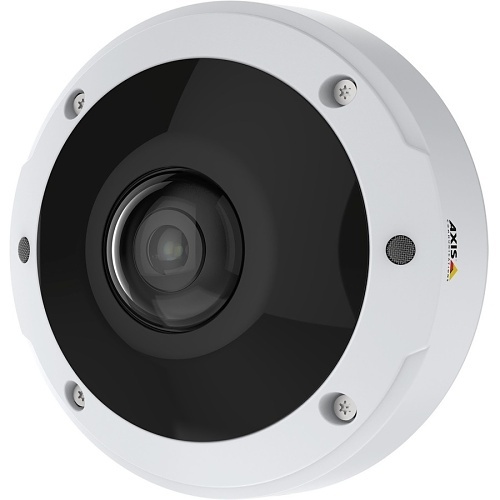

AXIS M3077-PLVE M30 Series, WDR IP66 6MP 1.56mm Fixed Lens IP Dome Camera, White
