General Information

ADI Part Number

327800903

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CE70KF0T-LMFS(2.8mm)

Product Line

ColorVu

Product Model

DS-2CE70KF0T-LMFS

Product Name

3K ColorVu Smart hybrid light Fixed Turret Camera

Product Series

ColorVu

Product Type

Surveillance Camera

weight

330 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Horizontal: 110°, Vertical: 60°, Diagonal: 143°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Color, Infrared

Video Signal Format

NTSC, PAL

Wide Dynamic Range

Yes

Camera

Night Vision Distance

20 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2960 x 1665

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

90%

Exposure

Longest Shutter Speed

1/25 Second

Minimum Illumination

0.001 lux

Shortest Shutter Speed

1/50000 Second

Interfaces/Ports

HDMI

No

Lens

Focal Length

2.8 mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Turret

Height

77.62 mm

Power Description

Input Voltage

12V DC

Power Source

DC

Product Information

Diameter

85.1 mm

Mount Type

Ceiling Mount, Corner Mount, Wall Mount

Storage

Recording Formats

3K

Video

Analog Video Signal Format

AHD, CVBS, CVI, TVI

Miscellaneous

Features

2D Noise Reduction, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Digital Wide Dynamic Range (D-WDR), Gain Control, Highlight Compensation (HLC), Noise Reduction, Smart IR, White Balance

Indoor/Outdoor

Outdoor

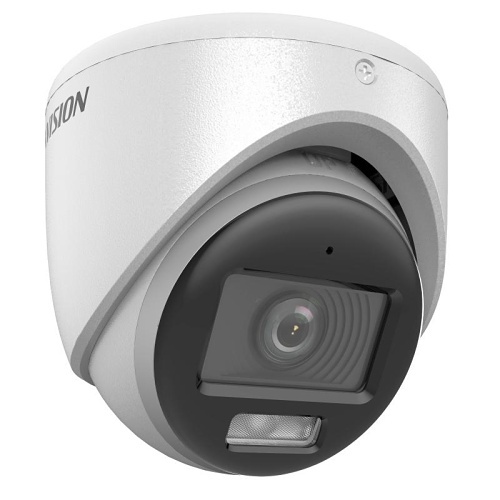

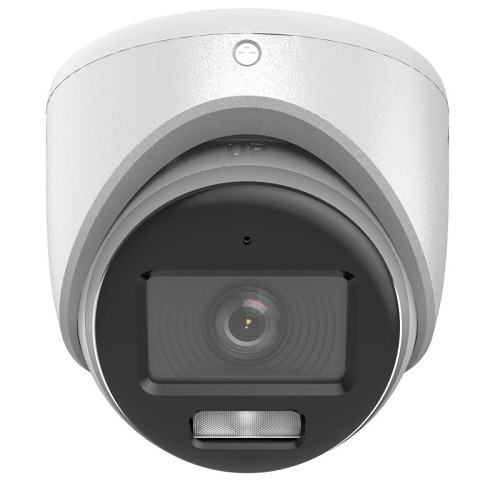

Hikvision DS-2CE70KF0T-LMFS(2.8mm) ColorVu Audio Turret Camera, 2.8mm Fixed Lens
