General Information

ADI Part Number

311316616

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2366G2-IU(2.8MM)(C)(BLACK)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2366G2-I(U)

Product Name

6 MP AcuSense Fixed Turret Network Camera

Product Series

EasyIP 4.0 with AcuSense

Product Type

Turret Cameras

weight

740 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

6MP

Field of View

horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Wide Dynamic Range

Yes

Camera

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3200 x 1800

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

Color: 0.003 Lux at (F1.6, AGC ON),B/W: 0 Lux with IR

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8 mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Color

Black

Durability

Dust Resistant, Water Resistant

Form Factor

Turret

Power Description

Input Voltage

12V DC

Product Information

Diameter

138.3 mm

Mount Type

Corner Mount, In-ceiling, Junction Box Mount, Pendant Mount, Pole Mount, Vertical Mount, Wall Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Face Detection, Highlight Compensation (HLC), HTTPS Encryption, Human Detection, Motion Detection, Password Protection, Region of Interest, Vehicle Detection

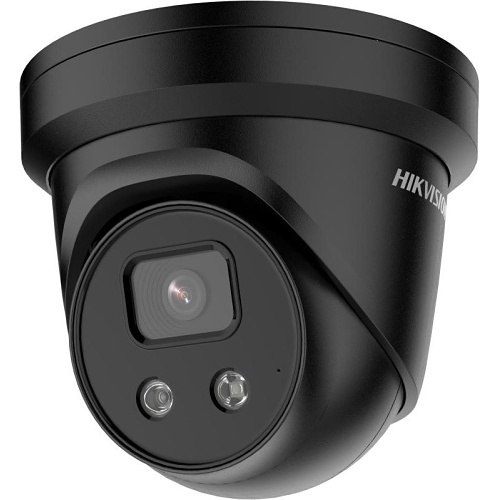

Hikvision DS-2CD2366G2-IU Pro Series AcuSense IP67 6MP IR 30M IP Turret Camera, 2.8mm Fixed Lens, Black
