General Information

ADI Part Number

316400857

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

AE-VC583I-IS/P(H)(M12)(12MM)

Product Model

AE-VC583I-IS/P(H)(M12)(12MM)

Product Name

AE-VC583I-IS/P(H)(M12)(12MM) Mobile ANPR Camera

Product Type

Mobile Camera

weight

622 g

Technical Information

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed Focal Length

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared

Video Signal Format

H.264, H.265, MJPEG

Wide Dynamic Range

Yes

Camera

Night Vision Distance

20 m

Certifications

Ingress Protection Rating

IP68, IP69

RoHS Compliant

Compliant

Environmental Conditions

Maximum Operating Temperature

75°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Minimum Illumination

0.01 lux|0 lux

Lens

Focal Length

12 mm

Lens Included

Yes

Maximum Focal Length

12 mm

Power Description

Input Voltage

36V DC, 9V DC

Product Information

Mount Type

M12-mount

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Impact Protection Rating

IK10

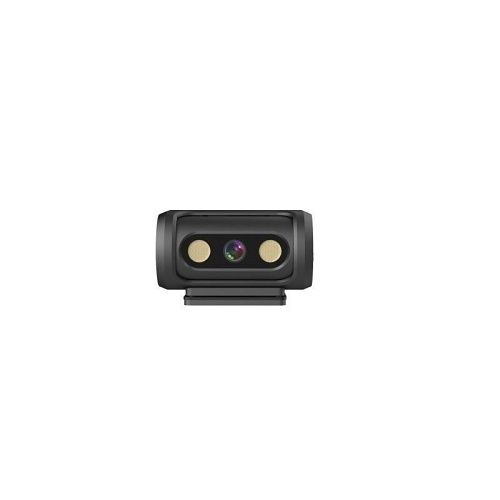

Hikvision AE-VC583I-IS/P(H)(M12)(12mm) Mobile ANPR Camera, 12mm Fixed Lens, WDR 120 dB, IP68, IK10, IP69K
