General Information

ADI Part Number

311318087

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2543G2-IS(2.8MM)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2543G2-IS

Product Name

4 MP AcuSense Built-in Mic Fixed Mini Dome Network Camera

Product Series

EasyIP 2.0 Plus with AcuSense

Product Type

Dome Cameras

weight

380 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Night Vision

Yes

Night Vision Type

Infrared

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1520

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/30 Second

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Dust Resistant, Vandal Resistant, Water Resistant

Form Factor

Mini Dome

Power Description

Input Voltage

12V DC

Product Information

Diameter

110 mm

Mount Type

Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Miscellaneous

Features

AcuSense

Impact Protection Rating

IK08

Indoor/Outdoor

Outdoor

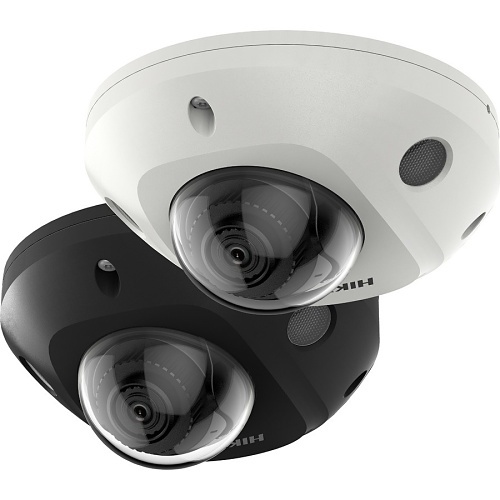

Hikvision DS-2CD2543G2-IS 4MP AcuSense Built-in Mic Fixed Mini Dome Network Camera, 2.8mm Lens
