General Information

ADI Part Number

02858-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02858-001

Product Model

P1265 Mk II

Product Name

AXIS P1265 Mk II

Product Series

P12

Product Type

Fixed cameras

weight

75 g

Technical Information

Connectivity Technology

Wired

Field of View

Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/2.5

Maximum Frame Rate

30 fps

Minimum Focal Length

3.7mm

Wide Dynamic Range

Yes

Certifications

Ingress Protection Rating

IP3X

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-20°C

Operating Humidity

85%

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0.2 lux

Shortest Shutter Speed

1/16500 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.7mm

Lens Included

Yes

Maximum Focal Length

3.70 mm

Physical Characteristics

Color

White

Material

Plastic, Steel

Product Information

Mount Type

M12

Storage

Recording Formats

Full HD

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP3X

Features

AI Analytics, HTTPS Encryption, Human Detection, Mirror, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Vehicle Detection, White Balance, Wide Dynamic Range

Indoor/Outdoor

Indoor/Outdoor

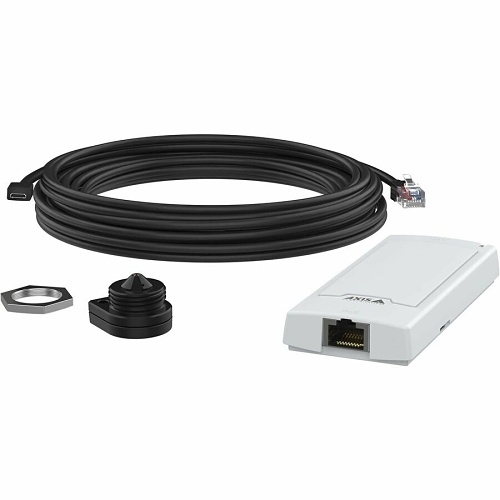

Package Contents

P1265 Mk II Modular Pinhole Camera
Installation Guide
Owner Authentication Key Main Unit
Sensor Unit
8 m (26 ft) Black Cable
1 x Locking Nut

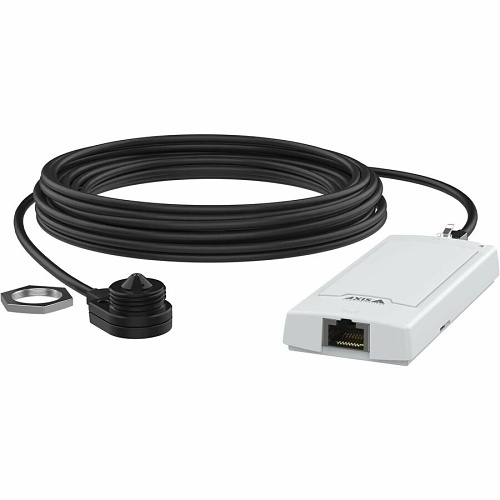

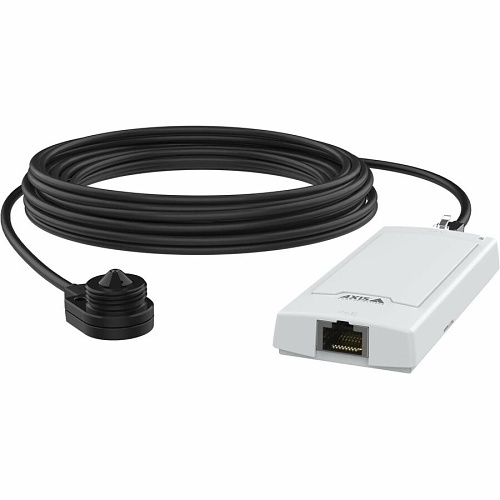

AXIS P1265 Mk II Modular Pinhole Camera
