General Information

ADI Part Number

311315516

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2666G2-IZS(2.8-12MM)(C)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2666G2-IZS

Product Name

6 MP AcuSense Motorized Varifocal Bullet Network Camera

Product Series

EasyIP 4.0 with AcuSense

Product Type

Bullet Cameras

Weight

1.45 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

6MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M14

Lens Type

Varifocal

Maximum Aperture

f/1.4

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

4x

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

60 m

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

3200 x 1800

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 Second

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

12mm

Lens Included

Yes

Maximum Focal Length

12 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Bullet

Power Description

Input Voltage

12V DC

Product Information

Diameter

144.1 mm

Mount Type

Corner Mount, Pendant Mount, Pole Mount, Vertical Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

3-Year

Miscellaneous

Environmentally Friendly

Yes

Features

DarkFighter

Impact Protection Rating

IK10

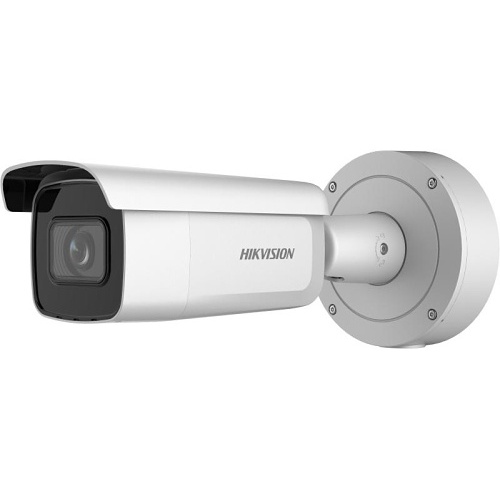

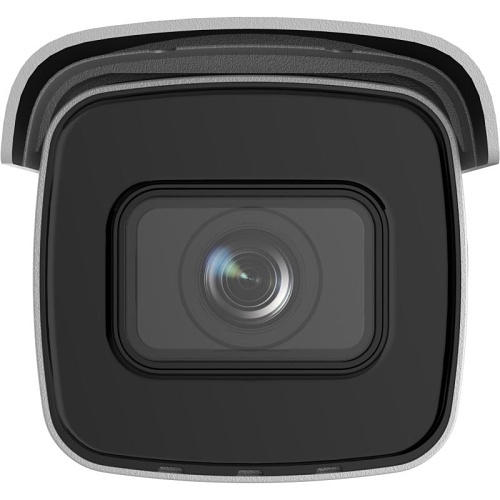

Hikvision DS-2CD2666G2-IZS Pro Series 6MP AcuSense Motorized Varifocal Bullet Network Camera, DarkFigther, 2.8-12mm Lens
