General Information

ADI Part Number

311315432

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2T86G2-2I(4MM)(C)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2T86G2-2I

Product Name

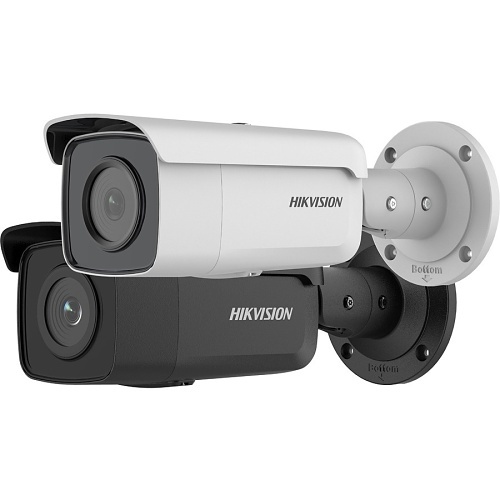

8 MP AcuSense Powered-by-Darkfighter Fixed Bullet Network Camera

Product Series

EasyIP 4.0 with AcuSense

Product Type

Bullet Cameras

weight

1.27 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

Diagonal, Horizontal, Vertical

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

4mm

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

60 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Security Grade

3

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.003 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

4 mm

Lens Included

Yes

Maximum Focal Length

4 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Bullet

Power Description

Input Voltage

12V DC

Product Information

Diameter

105 mm

Mount Type

Corner Mount, Junction Box Mount, Pole Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Miscellaneous

Environmental Certification

REACH, RoHS, WEEE

Environmentally Friendly

Yes

Features

DarkFighter

Hikvision DS-2CD2T83G2-2I Pro Series AcuSense 4K IP67 IR IP Bullet Camera, 4mm Fixed Lens, White
