General Information

ADI Part Number

02341-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02341-001

Product Model

P1467-LE

Product Name

AXIS P1467-LE

Product Series

P14

Product Type

Fixed cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Horizontal, Vertical

HD Recording

Yes

Lens Type

Varifocal

Maximum Frame Rate

180 fps

Minimum Focal Length

2.80 mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

2.9x

Wide Dynamic Range

Yes

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Color Supported

Colour, Monochrome

Maximum Video Resolution

2592 x 1944

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Exposure

Minimum Illumination

0 lux

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8-8mm

Lens Included

Yes

Maximum Focal Length

8 mm

Physical Characteristics

Color

White

Durability

Weather Resistant

Form Factor

Bullet

Weight (Approximate)

1.2 kg

Power Description

Input Voltage

28V DC

Product Information

Mount Type

Bracket Mount, Ceiling Mount, Wall Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features

Built-in IR LED, Day/Night, Defog, Motion Detection, SD Card Local Storage, Shock Detection, Tampering Alarm, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

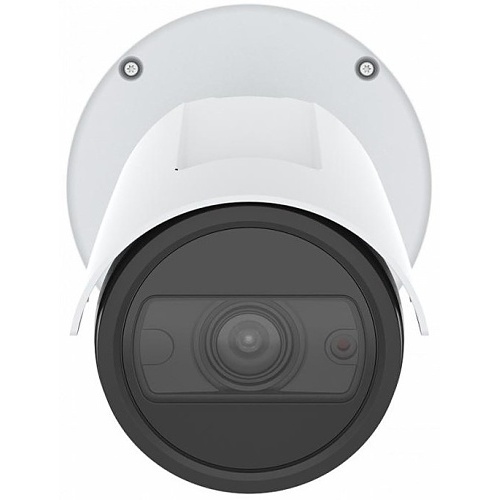

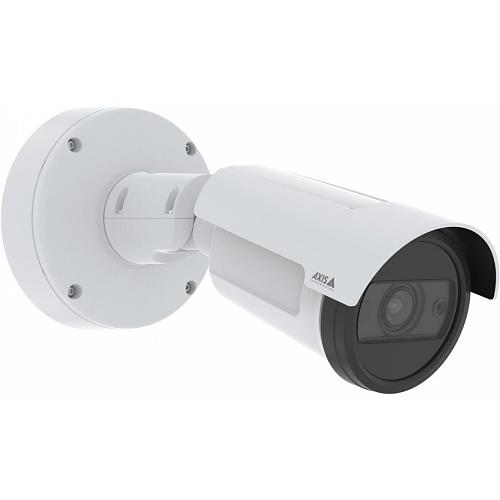

AXIS P1467-LE P14 Series, 5MP Zipstream IP BulletCamera, 2.8-8mm Varifocal Lens, IR 40M, IP66, White
