General Information

ADI Part Number

311316102

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2443G2-I(2mm)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2443G2-I(2mm)

Product Name

4 MP AcuSense Built-in Mic Fixed Cube Network Camera

Product Series

EasyIP 2.0 Plus with AcuSense

Product Type

Network Camera

weight

120 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

4MP

Field of View

Horizontal FOV 128.4°, Vertical FOV 75.4°, Diagonal FOV 147.1°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/2.0

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Night Vision Distance

10 m

Certifications

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2688 x 1512

Environmental Conditions

Maximum Operating Temperature

40°C

Minimum Operating Temperature

-10°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Minimum Illumination

0.008 lux|0 lux|0.005 lux

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2 mm

Lens Included

Yes

Maximum Focal Length

2 mm

Physical Characteristics

Color

White

Depth

32.6 mm

Form Factor

Cube

Width

65.2 mm

Power Description

Input Voltage

12V DC

Product Information

Length

102.9 mm

Mount Type

M12-Mount

Storage

Storage Type

Memory Card

Miscellaneous

Environmentally Friendly

Yes

Features

Audio Compression, Auto Gain Control, Built-in Microphone, Built-in PIR Sensor, Day/Night, Human Detection, Password Protection, Region of Interest, Removable IR Cut-off Filter, Vehicle Detection, Wide Dynamic Range

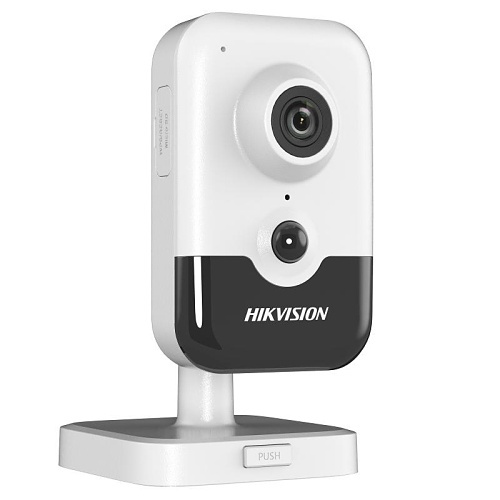

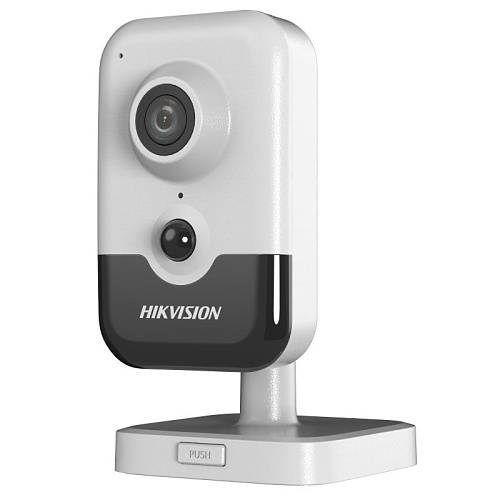

Hikvision DS-2CD2443G2-I(2MM) AcuSense Pro Series 4MP Fixed Cube IR WDR IP Camera with 2mm Fixed Lens, White
