General Information

ADI Part Number

EVMX4004

Brand Name

Vanco

Manufacturer

Vanco International, Inc

Manufacturer Part Number

EVMX4004

Product Line

Evolution

Product Model

EVMX4004

Product Name

Evolution HDBaseT 4×4 Matrix Selector Switch

Product Type

Video Switchbox

Technical Information

Connectivity Technology

Cable

Device Supported

Gaming Console, TV

Maximum Operating Distance

70.10 m

Media Type Supported

Twisted Pair

Number of Input Devices Supported

4

Certifications

RoHS Compliant

Compliant

Interfaces/Ports

Number of Connectivity (RJ-45) Ports

1

Number of HDMI Inputs

4

Number of HDMI Outputs

4

Physical Characteristics

Depth

202.2 mm

Height

42.9 mm

Width

439.9 mm

Power Description

Frequency

20-60 kHz

Product Information

Number of Displays Supported

4

Video

Graphics Modes

Full HD

Scan Format

1080p

Miscellaneous

Package Contents

(1) EVMX4004 HDBaseT 4×4 Matrix Selector Switch
(4) EVRX3000 HDBaseT Receivers
(5) IR Receiver (RX)
(4) IR Blaster (TX)
(1) DC 24V3.75A power supply
(1) Rack-mounting ear set

,

(1) Installation software CD
(1) IR remote control
(1) User Manual

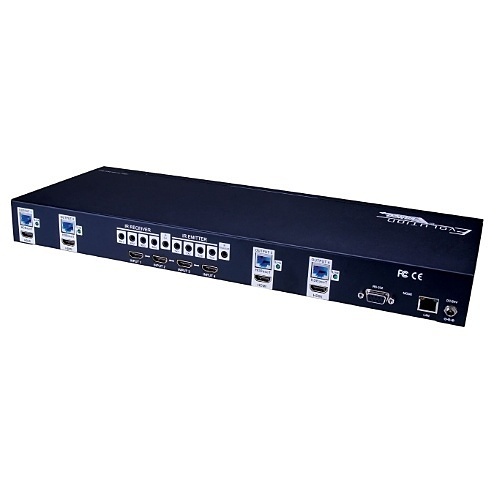

Vanco EVMX4004 Evolution HDBaseT 4x4 Matrix Selector Switch, 230'/70m
