General Information

ADI Part Number

HB75//A

Brand Name

Planar

Manufacturer

Leyard

Manufacturer Part Number

998-2158-00

Product Model

HB75

Product Name

4K Touch Screen Collaboration Display

Product Type

Digital Signage Display

Weight

48.08 kg

Technical Information

Backlight Technology

DLED

Bluetooth

Yes

Response Time

8 ms

Audio

RMS Output Power

30W

Speakers

Yes

Camera

Horizontal Viewing Angle

178°

Certifications

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Display Resolution

3840 x 2160

Pixel Pitch

0.42 mm

Screen Size

75"

Touchscreen

Yes

Vertical Viewing Angle

178°


Aspect Ratio

0.67291666666666661

Interfaces/Ports

DisplayPort

Yes

HDMI

Yes

Number of DisplayPorts

1

Number of HDMI Inputs

3

Number of HDMI Outputs

1

Memory

Memory Technology

DDR4 SDRAM

Network & Communication

Ethernet

Yes

Physical Characteristics

Depth

91.4 mm

Height

1016 mm

Material

Metal

VESA Mount Compatible

Yes

VESA Mount Standard

600 x 400

Width

1712 mm

Power Description

Input Voltage

120V AC, 230V AC

Processor

Processor Type

Cortex A73 + A53

Processor & Chipset

Processor Core

Quad-core (4 Core)

Processor Manufacturer

ARM

Processor Speed

1.50GHz

Product Information

Display Screen Type

LCD

Touchscreen Information

Multi-touch Screen

Yes

Video

Brightness (Nit)

350

Contrast Ratio

1,000:1

Scan Format

2160p

Warranty

Limited Warranty

1-Year

Miscellaneous

Country of Origin

KR

Environmental Certification

RoHS

Features

Built-in digital whiteboard, pre-loaded collaboration applications

Operating System Compatibility

Android

Package Contents

1 x Bluetooth antenna, 2 x active stylus, 2 x passive stylus, 2 x WiFi antenna, cable clips, HB75 display, HDMI Cable, QuickStart Guide, remote control, US power cord, USB A to B cable

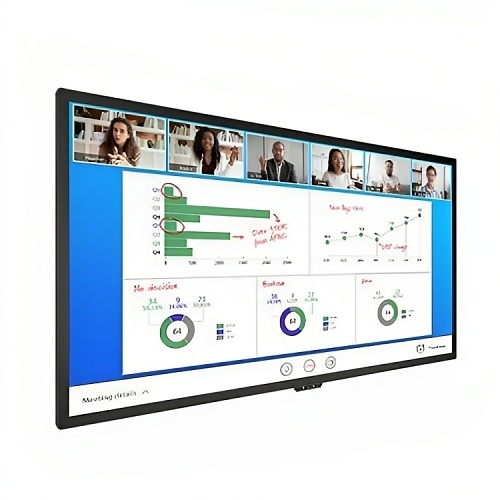

Planar HB75//A Planar Hb 75" LCD Ultra HD 18/7 Landscape Android Wall Mount Interactive Display
