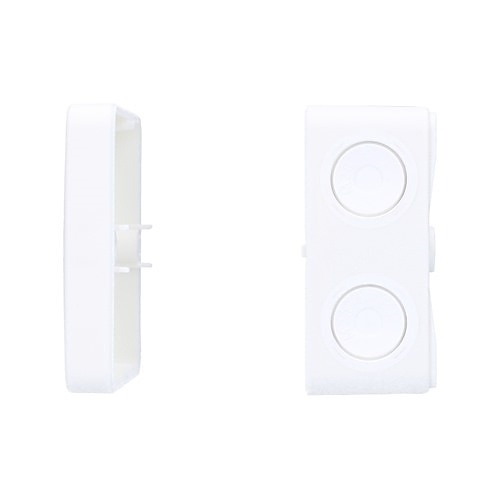

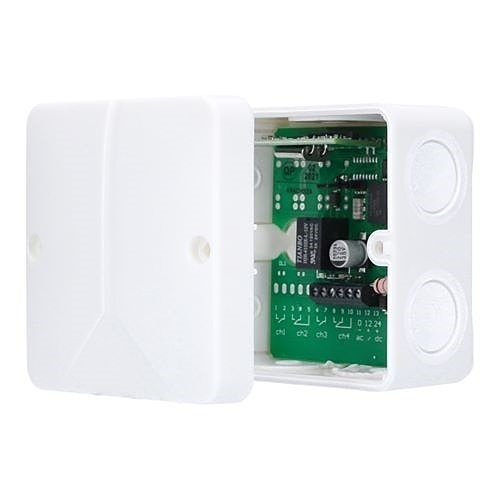

CDVI RX26-Z1 1-Relay Miniature Receiver
Brand:
CDVI
ADI #:RX26-Z1
Model #: RX26-Z1
Name: CDVI RX26-Z1 1-Relay Miniature Receiver
Single relay miniature receiver
Memory for up to 85 transmitter channels
Pulse or step mode for 1 relay
Product Overview
General Information
Receiver with 1 output relay and is suitable for external use.
Main Features
Single relay miniature receiver
Memory for up to 85 transmitter channels
Pulse or step mode for 1 relay
Data transmission protected by KeeLoq® rolling code
Ideal for automating outdoor gates or barriers - IP65 rated housing
Information
Category : Access Barriers & Crowd Control, Access Control, Gate Remote Transmitters, Products
Specifications
General Information
ADI Part Number
RX26-Z1
Brand Name
CDVI
Manufacturer
CDVI
Manufacturer Part Number
RX26-Z1
Packaged Quantity
1
Product Model
RX26-Z1
Product Name
RX26-Z Series - 2 or 4-Relay Receivers
Product Series
RX26
Product Type
Receiver
Technical Information
Number of Buttons
1
Wireless Technology
Radio Frequency
Certifications
TAA Compliant
No
Physical Characteristics
Application/Usage
Commercial, Garage Door, Gate, Industrial, Public Building, Roller Shutter
Color
White
Depth
50 mm
Depth (mm)
80
Height
80 mm
Height (mm)
50
Material
Polycarbonate
Material Details
Polycarbonate - Housing
Product Material
Polycarbonate
Weight (Approximate)
0.13 kg
Width
80 mm
Power Description
Input Voltage
12-24V AC, DC
Power Source
AC, DC
Product Information
Length
80 mm
Length (mm)
80
Miscellaneous
Features
Miniature housing, Pulse or step relay operation, Wireless transmission
Indoor/Outdoor
Indoor, Outdoor
