General Information

ADI Part Number

327800648

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CE19DF3T-LSZE(2.8-12mm)(O-STD)

Product Model

DS-2CE19DF3T-LSZE

Product Name

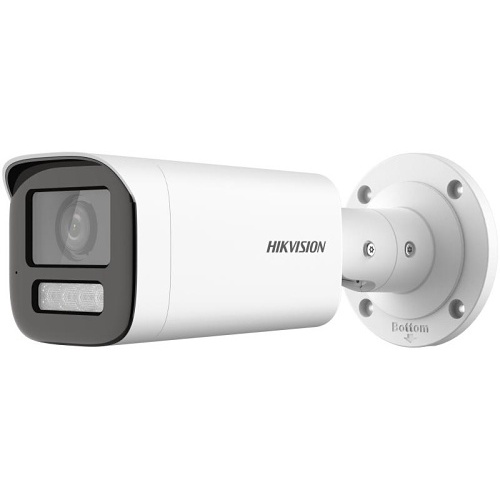

2MP Smart Hybrid Light ColorVu Varifocal Bullet Camera

Product Type

Network Camera

weight

920 g

Technical Information

Effective Camera Resolution

2MP

Field of View

Horizontal: 106° to 32° Vertical: 56° to 18° Diagonal: 127° to 37°

Lens Type

Motorised

Maximum Aperture

f/1.28

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Video Resolution

1920 x 1080

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Operating Humidity

90%

Exposure

Longest Shutter Speed

1/25 Second|1/30 Second

Minimum Illumination

0.0005 lux

Shortest Shutter Speed

1/50000 Second

Lens

Focal Length

2.8-12 mm

Lens Included

Yes

Maximum Focal Length

12 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Power Description

Input Voltage

12V DC

Product Information

Diameter

105 mm

Storage

Recording Formats

HD

Miscellaneous

Features

2.8 mm to 12 mm motorized varifocal lens, 24/7 color imaging with F1.28 aperture, 3D DNR technology delivers clean and sharp images, Clear imaging against strong back light due to 130 dB true WDR technology, High quality audio with audio over coaxial cable, built-in mic, High quality imaging with 2 MP, 1920 x 1080 resolution, Smart-Hybrid Light, optimize your security with flexible lighting options, Up to 60 m IR distance for bright night imaging, Up to 60 m white light distance for bright night imaging, Water and dust resistant (IP67)

Hikvision DS-2CE19DF3T-LSZE(2.8-12mm)(O-STD) 2MP Smart Hybrid Light ColorVu Varifocal Bullet Camera
