General Information

ADI Part Number

DGS-1005P-B

Brand Name

D-Link

Manufacturer

D-Link

Manufacturer Part Number

DGS-1005P-B

Product Model

DGS-1005P-B

Product Name

5-Port Desktop Gigabit PoE+ Switch

Product Type

Switch and Bridge

weight

0.27 kg

Technical Information

Media Type Supported

Twisted Pair

Power Consumption

65.5W

Certifications

RoHS Compliant

Compliant

Interfaces/Ports

Network (RJ-45)

Yes

Total Number of Network Ports

5

Media & Performance

Network Technology

1000Base-T

Network & Communication

Ethernet Technology

5 Gigabit Ethernet

Layer Supported

2

Networking Standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Physical Characteristics

Depth

98 mm

Height

28 mm

Material

Metal

Width

100 mm

Power Description

Input Voltage

54V

PoE (RJ-45) Port

Yes

PoE Budget

60W

Power Source

AC

Warranty

Limited Warranty

Lifetime Warranty

Miscellaneous

Country of Origin

CN

Environmental Certification

RoHS

Environmentally Friendly

Yes

Features

10 Gbps switching fabric capacity, 2-Year D-Link Warranty, 5x Gigabit Ethernet ports (4x PoE+ ports), D-Link Limited Lifetime Warranty after Registration, NDAA Compliant, Plug and play simplicity for easy installation, PoE+, 60W power budget

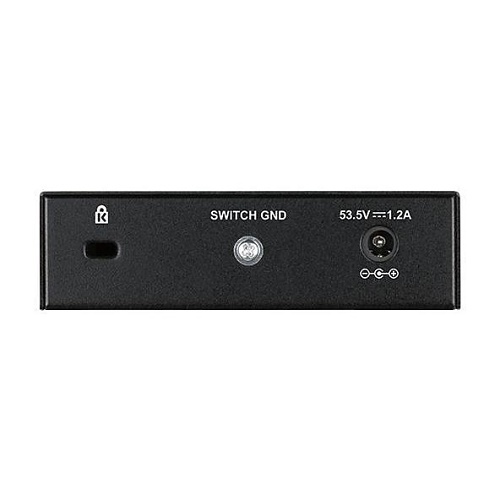

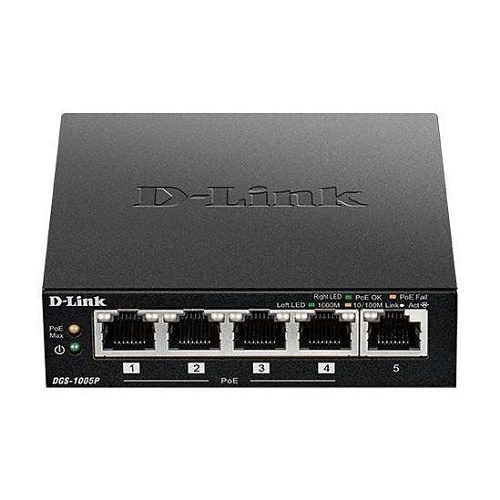

D-Link DGS-1005P-B 5-Port Desktop Gigabit PoE+ Switch
