General Information

ADI Part Number

02738-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02738-001

Product Model

02738-001

Product Name

AXIS P1388-LE

Product Series

P13

Product Type

Fixed cameras

weight

2.46 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

Horizontal, Vertical

Lens Mount Type

i-CS

Lens Type

Varifocal

Maximum Aperture

f/1.5

Maximum Frame Rate

60 fps

Minimum Focal Length

3.9mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

2.6x

Wide Dynamic Range

Yes

Camera

Night Vision Distance

50 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60 °C

Minimum Operating Temperature

-40°C

Operating Humidity

100%

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0.03 lux

Shortest Shutter Speed

1/66500 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.9-10mm

Lens Included

Yes

Maximum Focal Length

10 mm

Physical Characteristics

Color

White

Durability

Impact Resistant, Rain Resistant, Snow Resistant, Vandal Resistant

Form Factor

Box

Power Description

Input Voltage

10V DC, 28V DC

Product Information

Mount Type

Wall Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features

Audio Detection, Built-in IR LED, Day/Night, Electronic Image Stabilization, Gain Control, Motion Detection, Multi-view Stream, PTZ, SD Card Local Storage, Video Management System, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

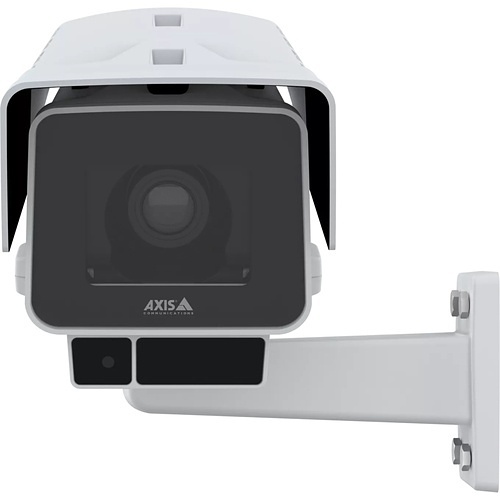

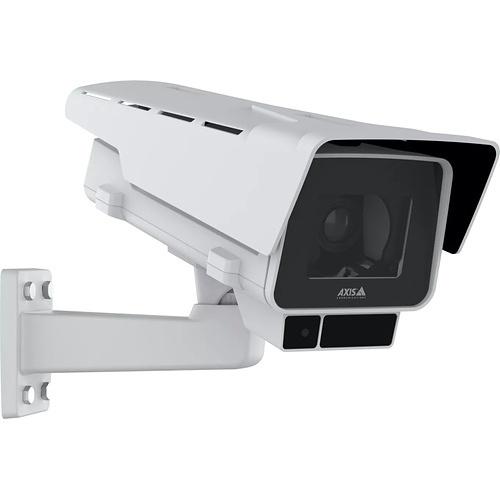

AXIS P1388-LE Outdoor Day/Night Box Camera, 3.9-10mm Varifocal Lens, White
