General Information

ADI Part Number

02486-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02486-001

Product Model

M1137-E MK II

Product Name

AXIS M1137-E MK II

Product Series

M11

Product Type

Fixed cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Horizontal, Vertical

Lens Mount Type

i-CS

Lens Type

Varifocal

Maximum Aperture

F/1.4

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Optical Zoom

4.6x

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Certifications

CE Marking

Yes

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Maximum Video Resolution

2592 x 1944

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-25°C

Exposure

Minimum Illumination

0.03 lux

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8-13mm

Lens Included

Yes

Maximum Focal Length

13 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

White

Form Factor

Box Mount

Power Description

Input Voltage

28V DC

Product Information

Mount Type

Bracket Mount, Wall Mount

Storage

Storage Type

Memory Card

Miscellaneous

Country of Origin

TW

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Features

Day/Night, SD Card Local Storage, Tampering Alarm, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

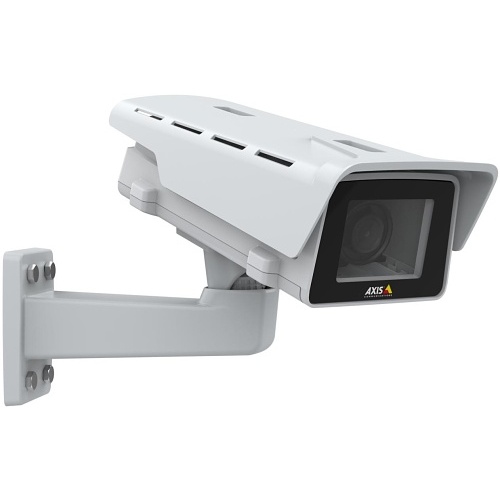

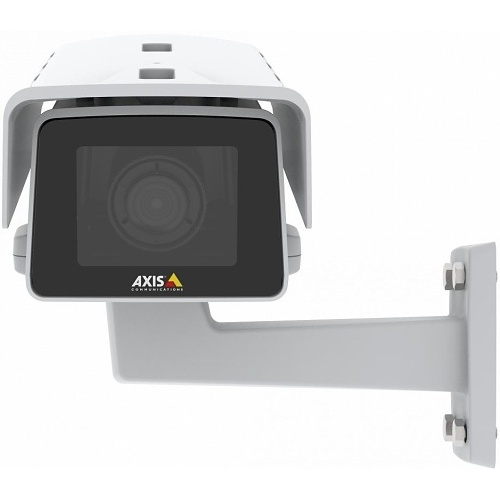

AXIS M1137-E MK II M11 Series, 5MP Outdoor IP Box Camera, 2.8-13mm Lens, IP66, White
