General Information

ADI Part Number

SMLE1-9V5-3H

Brand Name

Pelco by Motorola Solutions

Manufacturer Part Number

SMLE1-9V5-3H

Product Line

Sarix Multi

Product Series

Sarix Multi Enhanced

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

9MP

Lens Type

Varifocal

Maximum Aperture

f/1.9

Maximum Frame Rate

30 fps

Minimum Focal Length

3.3 mm

Night Vision

Yes

Night Vision Type

IR

Video Formats

H.264, H.265, MJPEG

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Number of Sensors

3

Environmental Conditions

Maximum Operating Temperature

50°C

Minimum Operating Temperature

-10°C

Operating Humidity

0-95%

Exposure

Longest Shutter Speed

1/7.5 Second

Shortest Shutter Speed

1/8000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.3-5.7 mm

Lens Included

Yes

Maximum Focal Length

5.7 mm

Minimum Aperture

f/1.5

Network & Communication

Remote Management

Yes

Physical Characteristics

Durability

Dust Resistant, Impact Resistant, Water Resistant

Width

298 mm

Power Description

Input Voltage

24V AC, 24V DC

Product Information

Diameter

197 mm

Mount Type

In-Ceiling Mount, Pendant, Surface

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

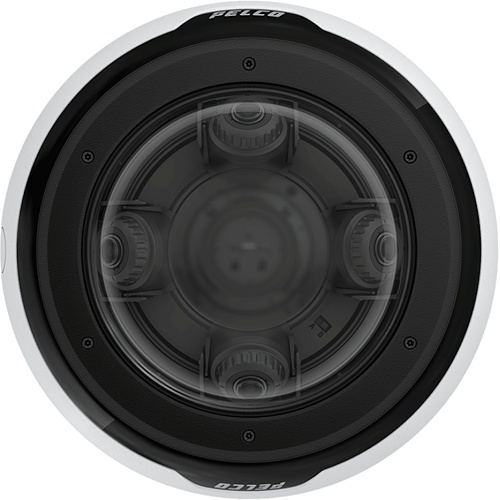

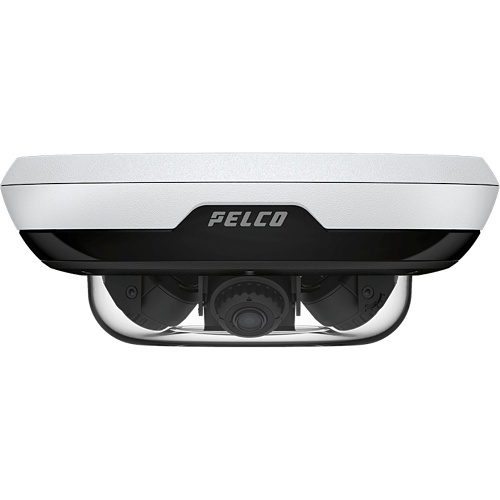

Pelco SMLE1-9V5-3H Sarix Multi 9MP Camera with 3.3-5.7 mm Lens and Triple Image Capture
