General Information

ADI Part Number

DGS-1008P-B

Brand Name

D-Link

Manufacturer

D-Link

Manufacturer Part Number

DGS-1008P-B

Product Model

DGS-1008P-B

Product Name

8-Port Gigabit PoE Unmanaged Desktop Switch

Product Type

Switch and Bridge

Technical Information

Media Type Supported

Twisted Pair

Certifications

RoHS Compliant

Compliant

Interfaces/Ports

Modular

No

Total Number of Network Ports

8

Uplink Port

No

Management & Protocols

Manageable

No

Media & Performance

Network Technology

1000Base-T

Network & Communication

Ethernet Technology

Gigabit Ethernet

Layer Supported

2

Networking Standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Physical Characteristics

Color

Green

Depth

119.4 mm

Form Factor

Desktop

Height

38.1 mm

Material

Metal

Width

190.5 mm

Power Description

Input Voltage

54V

PoE (RJ-45) Port

Yes

PoE Budget

60W

Power Source

Power Adapter

Warranty

Limited Warranty

Lifetime Warranty

Miscellaneous

Environmental Certification

RoHS

Environmentally Friendly

Yes

Features

3-pin front panel DIP switch for real-time toggling Energy-efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control, Cable diagnostics troubleshooting, Compact and durable housing, high port count, and fanless design for noise-free operation, D-Link Limited Lifetime Warranty after Registration, NDAA Compliant

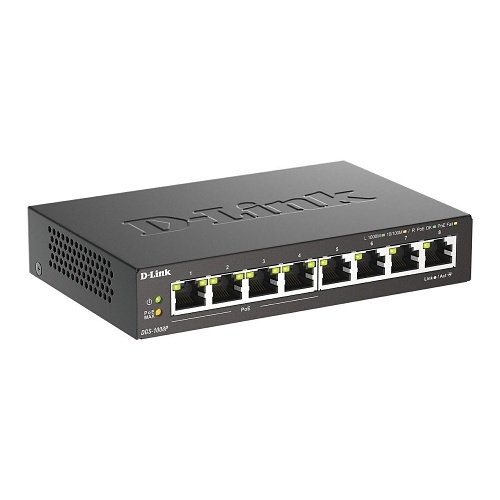

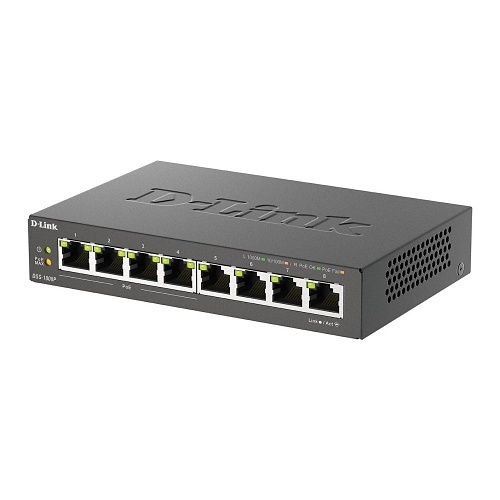

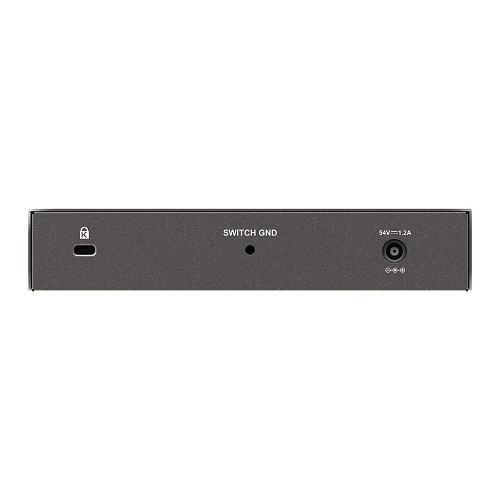

D-Link DGS-1008P-B 8-Port Desktop Gigabit PoE+ Switch
