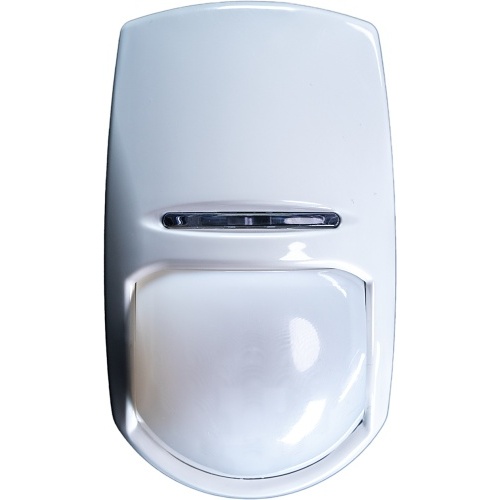

PIR 18m Curtain Detector
PIR 18m Curtain Detector
FPKX18DC
MFG #: FPKX18DC
Overview
Specification
Marketing Information
18m detection range
Dual element pyro electric sensor
Digital Curtain PIR Detector Sealed optics
Selectable End of Line (EOL) resistors
Auto sensitivity settings
Sealed optics
Digital signal processing and blue LED indication
Supplied with both 18m solid vertical curtain and 30m long range lenses and tamper proof ceiling and wall brackets
5 Year Warranty
Information
Name : Pyronix FPKX18DC Motion Sensor - Wired - Passive Infrared Sensor (PIR) - 30 m Motion Sensing Distance - Wall-mountable, Ceiling-mountable - ABS Plastic, Pyronix Limited, ADI UK, Pyronix
Category :
UPC Code : 5060317520306
General Information
ADI Part Number
FPKX18DC
Brand Name
Pyronix
Manufacturer
Pyronix Limited
Manufacturer Part Number
FPKX18DC
Product Model
FPKX18DC
Product Type
Motion Sensor
UPC
5060317520306
Weight
125 g
Product Name
KX18DC Digital Curtain Detector - Grade 2
Technical Information
Connectivity Technology
Wired
Maximum Motion Sensing Distance
30 m
Passive Infrared Sensor (PIR)
Yes
Physical Characteristics
Depth
50 mm
Form Factor
Wall-mountable, Ceiling-mountable
Height
117 mm
Material
ABS Plastic
Width
69 mm
Miscellaneous
Environmental Certification
RoHS
Environmentally Friendly
Yes
Package Contents
KX18DC Digital Curtain Detector - Grade 2
Wall Mount Bracket
Ceiling Mount Bracket
Warranty
Limited Warranty
5 Year
