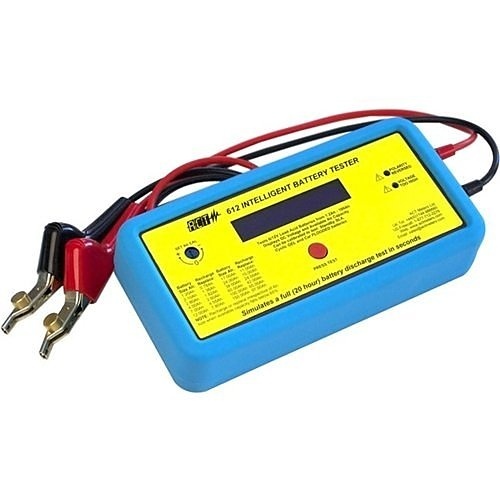

TEST BATTERY 6/12V 1.2-100Ah
ACT612
MFG #: ACT612
- Overview
- Specification
Marketing Information
Key Features
- New compact and robust design with enhanced accuracy and result delivery time
- Simulates a 20 hour (C20) discharge test in seconds
- Developed for standby SLA, cyclic GEL and car FLOODED batteries
- Tests 6V batteries between 1.2Ah and 10Ah, and 12V batteries between 1.2Ah and 100Ah
- Displays DC Voltage and the actual Ampere hour (Ah) capacity available
- Powered by the battery under test, with ultra low heat generation for continuous testing
- Simple in operation, free from complicated settings and no user interpretation of results is required
- Used by engineers from various industries from security, telecommunications to mobility
Dual voltage, designed for common lead acid battery types
Use the Calibration Control to select either standby SLA, cyclic GEL and car FLOODED battery types prior to testing. The ACT 612 will test 6V battery models between 1.2Ah and 10Ah, and 12V battery models between 1.2Ah and 100Ah.
Simple Operation
Once connected - ensuring a tight connection to clean battery terminals - the ACT 612 automatically displays the DC Voltage available followed by the Ah capacity reading. Results are displayed within seconds.
Results indicate when to recharge or replace
Battery manufacturers recommend to recharge or replace a battery when its rated Ah capacity falls below 65%. By giving a clear and accurate reading of a battery's Ah capacity available, the ACT 612 makes it easy to identify replacements quickly. A quick look up table shows common battery sizes and at what Ah capacity rate they should be recharged or replaced.
Unique Ah Calibration Control
This feature enables the unit to be calibrated to test various lead acid battery technologies or to specific brands of batteries.
Advanced Pulse Load Technology
The ACT 612 uses advanced pulse load technology to analyze Ah capacity, based on the battery's temperature and state of charge. This method is significantly more accurate than measuring voltage and internal resistance and does not deplete the battery unlike a conventional battery load tester.
Information
Name : ACT Battery Testing Device - Voltage Monitor, Resistance Measure, ACT Meters, Ltd, ADI UK, ACT
Category :
UPC Code :
General Information
ADI Part Number
ACT612
Brand Name
ACT Meters
Manufacturer
ACT Meters, Ltd
Manufacturer Part Number
ACT 612
Product Type
Battery Testing Device
UPC
Product Name
612 6V/12V Lead Acid Intelligent Battery Tester
Technical Information
Device Function
Voltage Monitor, Resistance Measure
Physical Characteristics
Depth
41 mm
Height
84 mm
Width
170 mm
