General Information

ADI Part Number

TNO-C8083E

Brand Name

Hanwha Vision

Manufacturer

Hanwha Group

Manufacturer Part Number

TNO-C8083E

Product Model

TNO-C8083E

Product Name

5MP Compact Explosion-proof AI Camera

Product Series

T Series

Product Type

Network Camera

weight

4770 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

5MP

Field of View

Diagonal, Horizontal, Vertical

Lens Type

Varifocal

Maximum Aperture

f/3.1

Maximum Frame Rate

30 fps

Minimum Focal Length

3.2mm

Night Vision

Yes

Night Vision Type

Infrared (IR)

Video Formats

H.264, H.265, MJPEG

Video Resolution

1280 x 720

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Certifications

Ingress Protection Rating

IP66

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

2592 x 1944

Environmental Conditions

Maximum Operating Temperature

55°C

Minimum Operating Temperature

-30°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/5 Second

Minimum Illumination

0.007 lux|0.07 lux

Shortest Shutter Speed

1/12000 Second

Interfaces/Ports

HDMI

No

Lens

Focal Length

3.2-10.2mm

Lens Included

Yes

Maximum Focal Length

10.2 mm

Minimum Aperture

f/1.6

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

Silver

Depth

316.2 mm

Form Factor

Bullet

Product Information

Diameter

110.5 mm

Mount Type

Pole Mount, Wall Mount

Storage

Recording Formats

HD

Storage Type

Memory Card

Miscellaneous

Impact Protection Rating

IK10

Indoor/Outdoor

Indoor, Outdoor

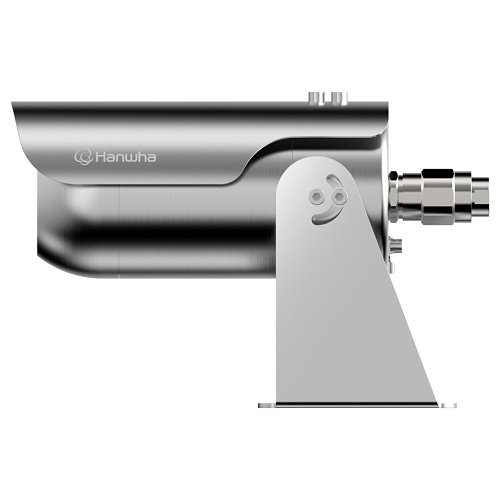

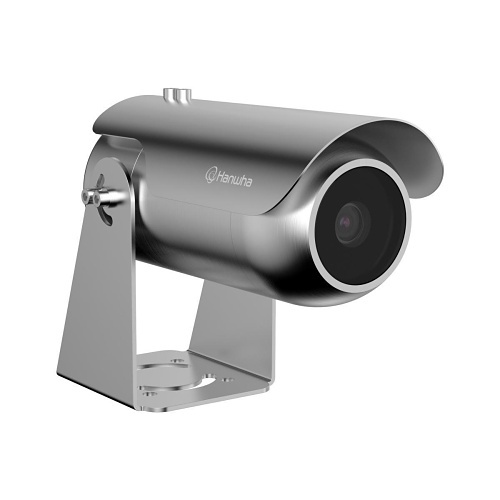

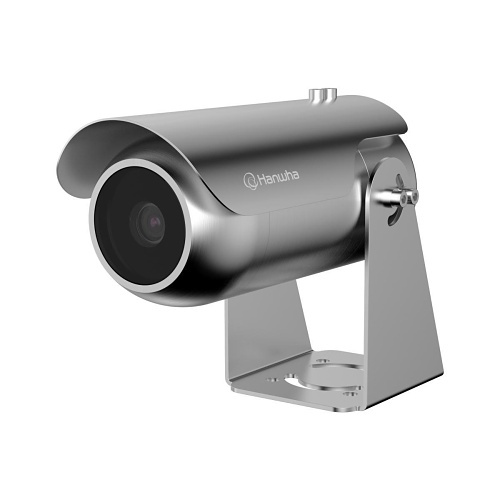

Hanwha TNO-C8083E 5MP Compact Explosion-proof AI Camera
