General Information

ADI Part Number

SRXF3-8180-ES

Brand Name

Pelco by Motorola Solutions

Manufacturer

Pelco by Motorola Solutions

Manufacturer Part Number

SRXF3-8180-ES

Product Line

Sarix

Product Model

SRXF3-8180-ES

Product Name

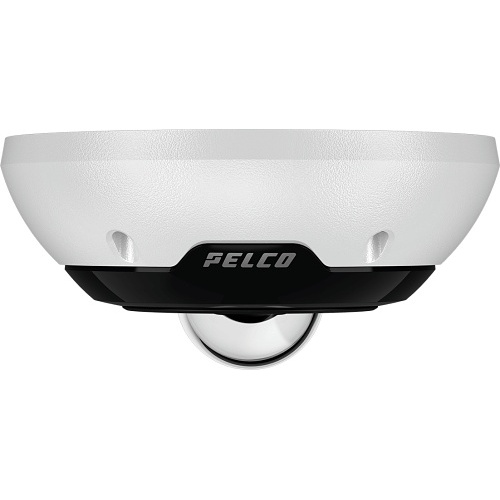

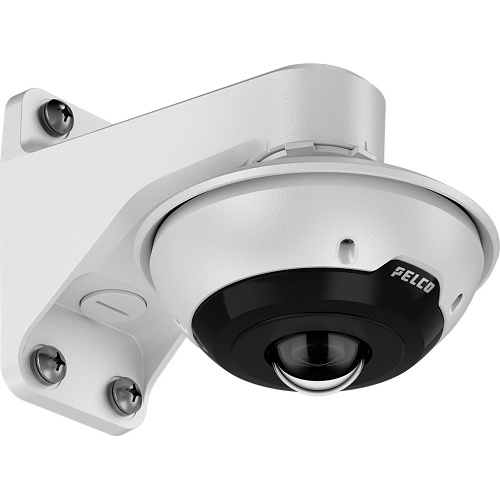

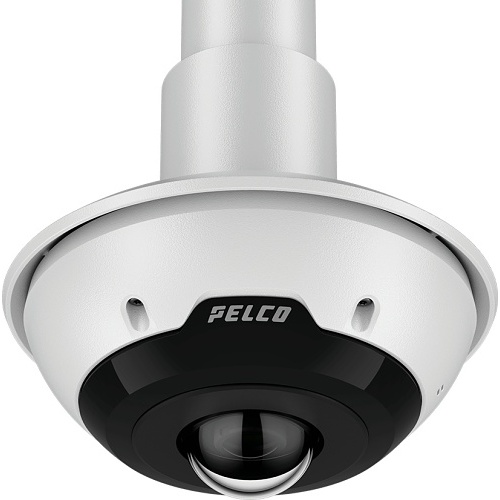

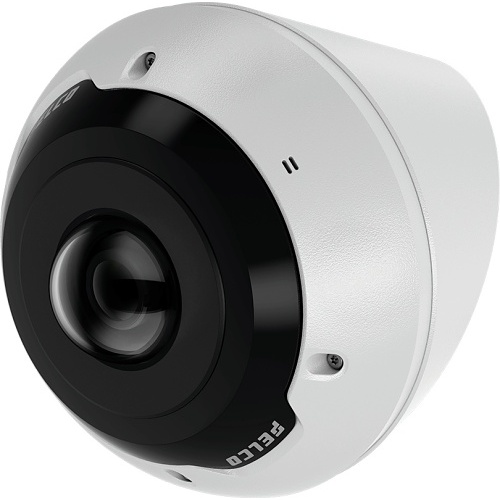

Sarix Fisheye 3 Series Surface Mount Camera

Product Series

Sarix Fisheye 3

Product Type

Camera

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

Horizontal, Vertical

Maximum Aperture

f/2

Maximum Frame Rate

60 fps

Night Vision

Yes

Night Vision Type

IR illumination

Video Formats

H.264, H.265, MJPEG

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

17 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

0-100%

Exposure

Longest Shutter Speed

1/6 Second

Minimum Illumination

0.1, 0.2, 0lux

Shortest Shutter Speed

1/8000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

1.74mm

Lens Included

Yes

Maximum Focal Length

1.74 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Form Factor

Fisheye

Height

71.3 mm

Weight

0.92kg

Width

153.5 mm

Power Description

Input Voltage

12V DC

Product Information

Length

153.5 mm

Mount Type

Surface Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

BIS, CE, cUL, KC, NOM, RCM, RoHS, UKCA, UL

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

Pelco SRXF3-8180-ES Sarix 3 Series 8MP Outdoor Fisheye Camera, 180
