General Information

ADI Part Number

SD300MDS

Brand Name

CDVI

Manufacturer

CDVI Group

Manufacturer Part Number

SD300M-DS

Packaged Quantity

1

Product Model

SD300MDS

Product Name

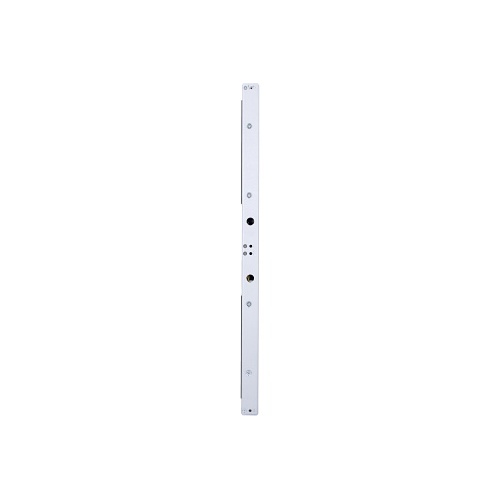

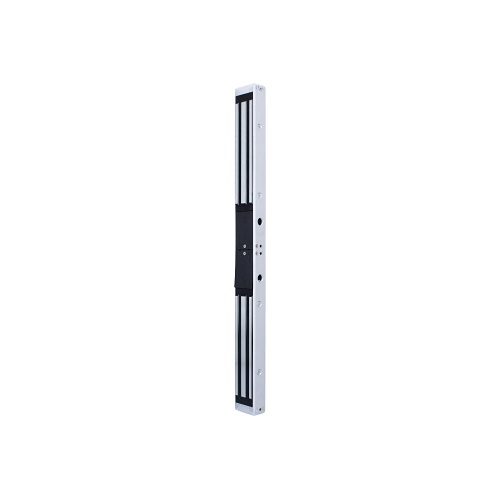

300kg monitored surface mount magnet with universal relay

Product Series

SD SERIES

Product Type

Magnetic Lock

Technical Information

Door Supported

Double Door, Single Door

Security Configuration

Fail safe

Certifications

Ingress Protection Rating

IP42

RoHS Compliant

Compliant

Physical Characteristics

Application/Usage

Access Control System, Commercial, Door, Industrial, Public Building, Wooden Door

Color

Silver

Depth

26 mm

Height

503 mm

Weight

2.2kg

Width

45 mm

Power Description

Input Voltage

12V DC, 24V DC

Product Information

Holding Force

300kg

Length

45 mm

Mount Type

Surface Mount

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmentally Friendly

Yes

Features

Surface Mount

CDVI SD300MDS Magnet Dbl M/Lk Mon 12/24v Dr St
