General Information

ADI Part Number

IHDW3849HASPV2S4B

Brand Name

Dahua Technology

Manufacturer

Zhejiang Dahua Technology Co., Ltd.

Manufacturer Part Number

DH-IPC-HDW3849HP-AS-PV-0280B-S4

Product Line

WizSense

Product Model

DH-IPC-HDW3849HP-AS-PV-0280B-S4

Product Name

Dahua DH-IPC-HDW3849HP-AS-PV-0280B-S4

Product Series

3

Product Type

Camera

weight

754 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

H: 106°; V: 55°; D: 125°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Number of IR LEDs

1

Video Formats

H.264, H.264B, H.264H, H.265, MJPEG, Smart H.264+, Smart H.265+

Video Resolution

1280 x 720

Camera

Image Sensor Type

CMOS

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/3 Second

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

Black

Durability

Dust Resistant, Water Resistant

Form Factor

Eyeball

Power Description

Input Voltage

12V DC

Product Information

Diameter

122 mm

Mount Type

Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Miscellaneous

Features

3D Noise Reduction, Audio Compression, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Digital Watermark, Highlight Compensation (HLC), Mirror, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range

Indoor/Outdoor

Outdoor

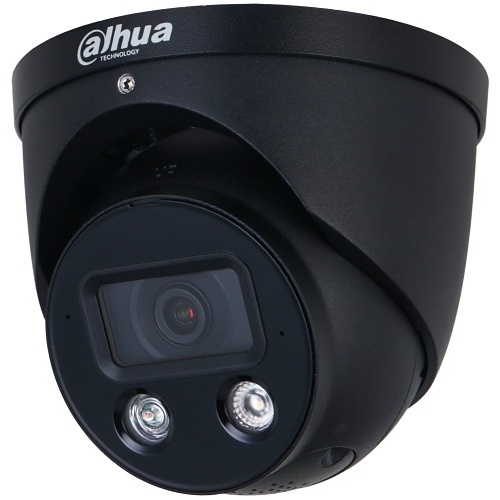

Dahua DH-IPC-HDW3849HP-AS-PV 8MP Smart Dual Light Active Deterrence Eyeball WizSense IP Camera, 2.8mm Fixed Lens, 30m IR
